A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
The AD7980ACPZ-RL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be used for calibration. Additionally, the user can perform an external calibration by applying a known voltage to the input and adjusting the offset and gain registers accordingly.
The maximum sampling rate of the AD7980ACPZ-RL7 is 1 MSPS. The power consumption increases with the sampling rate, but the device has a power-down mode that can be used to reduce power consumption when not in use. The power consumption can be estimated using the formula: Power (mW) = (VDD x IDD) + (VDD x IDD_STBY) x (fS / fMAX), where VDD is the supply voltage, IDD is the active current, IDD_STBY is the standby current, fS is the sampling frequency, and fMAX is the maximum sampling frequency.
The AD7980ACPZ-RL7 outputs 16-bit data in a twos-complement format. The output data can be handled by using a microcontroller or a digital signal processor to read the data from the device. The data can be read using a serial interface, such as SPI or I2C, depending on the configuration of the device.
The AD7980ACPZ-RL7 has a temperature range of -40°C to 125°C. The device's performance can be affected by temperature variations, which can cause changes in the offset and gain. To compensate for temperature variations, the user can use an external temperature sensor to monitor the temperature and adjust the offset and gain registers accordingly. Additionally, the user can use a temperature-compensated voltage reference to reduce the effect of temperature on the device's performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD7980ACPZ-RL7 Overview

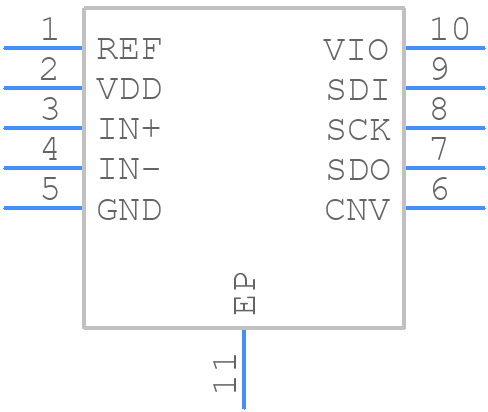

Use the download button to access the AD7980ACPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD798,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
