AD7980ARMZRL7 - Analog Devices

Description: High performance Pseudo differential analog input range 0 V to VREF with VREF between 2.5 V to 5 V Throughput: 1 MSPS Zero latency architecture 16-bit resolution with no missing codes INL: ±0.6 LSB typical, ±1.25 LSB maximum Dynamic range: 92 dB, VREF = 5 V SNR: 91.5 dB at fIN = 10 kHz, VREF = 5 V THD: −114 dB at fIN = 10 kHz, VREF = 5 V SINAD: 91 dB at fIN = 10 kHz, VREF = 5 V Low power dissipation Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface 4 mW at 1 MSPS (VDD only

Download AD7980ARMZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

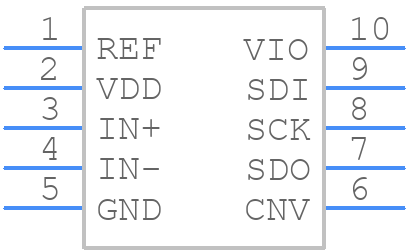

AD7980ARMZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7980ARMZRL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-10)
click to zoom
3D Models
AD7980ARMZRL7 - Analog Devices - 3D model - Small Outline Packages - (RM-10)
click to zoom

AD7980ARMZRL7 Details

  • Manufacturer Part Number:

    AD7980ARMZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.71 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7980ARMZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD7980ARMZRL7 has an internal calibration circuit that calibrates the device during power-up. However, it's recommended to perform an external calibration using an external voltage reference and a calibration signal to ensure accurate conversions.
  • The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin, and then the digital interface pins. This ensures that the analog circuitry is powered up before the digital interface.
  • The AD7980ARMZRL7's digital output data should be handled using a first-in-first-out (FIFO) buffer or a similar data buffering mechanism to ensure that the data is transmitted accurately and reliably. Also, use a suitable clock frequency and data transmission protocol to prevent data corruption or loss.
  • The recommended operating temperature range for the AD7980ARMZRL7 is -40°C to 125°C. Operating the device outside this range may affect its performance, accuracy, and reliability. The device's performance may degrade at higher temperatures, and it may not function correctly at lower temperatures.
