AD7980BRMZ - Analog Devices

Description: High performance Pseudo differential analog input range 0 V to VREF with VREF between 2.5 V to 5 V Throughput: 1 MSPS Zero latency architecture 16-bit resolution with no missing codes INL: ±0.6 LSB typical, ±1.25 LSB maximum Dynamic range: 92 dB, VREF = 5 V SNR: 91.5 dB at fIN = 10 kHz, VREF = 5 V THD: −114 dB at fIN = 10 kHz, VREF = 5 V SINAD: 91 dB at fIN = 10 kHz, VREF = 5 V Low power dissipation Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface 4 mW at 1 MSPS (VDD only

Download AD7980BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

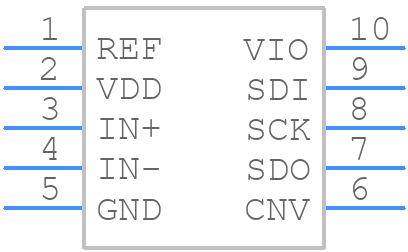

AD7980BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7980BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
AD7980BRMZ - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

AD7980BRMZ Details

  • Manufacturer Part Number:

    AD7980BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.71 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7980BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use a ferrite bead or a small inductor to filter the digital noise.
  • To optimize the performance of the AD7980BRMZ in a system with multiple ADCs, ensure that each ADC has its own separate analog and digital grounds, and use a common mode filter to reduce noise and interference between the ADCs.
  • The recommended power-up sequence for the AD7980BRMZ is to power up the analog supply (VCC) first, followed by the digital supply (VDD), and then the clock signal. This sequence helps prevent latch-up or damage to the device.
  • If the AD7980BRMZ is not converting data correctly or is producing incorrect results, check the input signal range, ensure that the reference voltage is within the recommended range, and verify that the clock signal is within the recommended frequency range. Also, check for any noise or interference on the input signals and ensure that the device is properly powered and grounded.
  • The recommended method for calibrating the AD7980BRMZ is to use the internal calibration feature, which can be initiated by setting the CAL bit in the control register. This feature calibrates the ADC's offset and gain errors, ensuring accurate conversions.
