AD7980BRMZRL7 - Analog Devices

Description: High performance Pseudo differential analog input range 0 V to VREF with VREF between 2.5 V to 5 V Throughput: 1 MSPS Zero latency architecture 16-bit resolution with no missing codes INL: ±0.6 LSB typical, ±1.25 LSB maximum Dynamic range: 92 dB, VREF = 5 V SNR: 91.5 dB at fIN = 10 kHz, VREF = 5 V THD: −114 dB at fIN = 10 kHz, VREF = 5 V SINAD: 91 dB at fIN = 10 kHz, VREF = 5 V Low power dissipation Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface 4 mW at 1 MSPS (VDD only

Download AD7980BRMZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

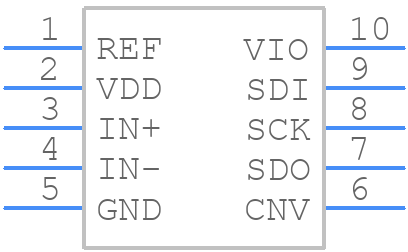

AD7980BRMZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7980BRMZRL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-10)
click to zoom
3D Models
AD7980BRMZRL7 - Analog Devices - 3D model - Small Outline Packages - (RM-10)
click to zoom

AD7980BRMZRL7 Details

  • Manufacturer Part Number:

    AD7980BRMZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.71 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7980BRMZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible.
  • The AD7980BRMZRL7 has an internal calibration circuit that calibrates the device during power-up. No external calibration is required. However, it's recommended to follow the datasheet's guidelines for power-up sequencing and voltage supply requirements to ensure proper calibration.
  • The AD7980BRMZRL7 has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • The AD7980BRMZRL7 outputs 16-bit digital data. Use a FIFO or a buffer to handle the data, and consider using digital filtering techniques such as averaging or median filtering to reduce noise and improve accuracy.
