AD7980SRMZ-EP - Analog Devices

Description: 16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP

Download AD7980SRMZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

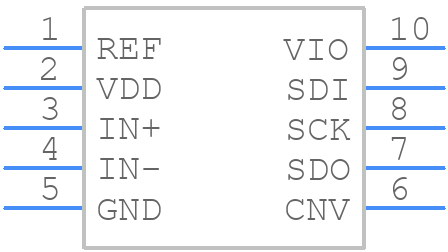

AD7980SRMZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7980SRMZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7980SRMZ-EPaaa
click to zoom
3D Models
AD7980SRMZ-EP - Analog Devices - 3D model - Small Outline Packages - AD7980SRMZ-EPaaa
click to zoom

AD7980SRMZ-EP Details

  • Manufacturer Part Number:

    AD7980SRMZ-EP

  • Source Url Status Check Date:

    2013-05-01 14:56:22.175

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.71 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD7980SRMZ-EP Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and AVSS pins, and keep the decoupling capacitors close to the pins.
  • The AD7980SRMZ-EP has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be used for calibration. It is recommended to perform a self-calibration cycle after power-up and before taking any conversions.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD and AVSS), followed by the digital power supply (DVDD and DGND). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The BUSY signal goes high when the AD7980SRMZ-EP is performing a conversion. The host controller should monitor the BUSY signal and wait for it to go low before initiating a new conversion or accessing the conversion result.
  • The maximum sampling rate of the AD7980SRMZ-EP is 1 MSPS. The power consumption of the device increases with the sampling rate, so it is recommended to use the lowest sampling rate necessary for the application to minimize power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7980SRMZ-EP Overview

Use the download button to access the AD7980SRMZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD798, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
