AD7985BCPZ-RL7 - Analog Devices

Description: 15.5 mW ADC

Download AD7985BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

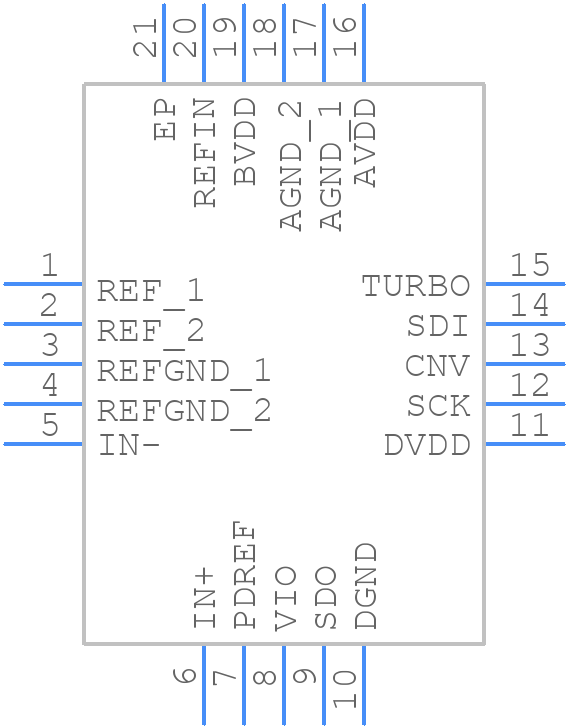

Symbol
AD7985BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7985BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-10
click to zoom
3D Models
AD7985BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-10
click to zoom

AD7985BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7985BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.111 V

  • Conversion Time-Max:

    0.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7985BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD7985BCPZ-RL7 has an internal calibration circuit that performs a self-calibration sequence during power-up. No external calibration is required. However, if the user wants to perform an external calibration, it can be done by applying a known voltage to the input and adjusting the offset and gain registers accordingly.
  • The maximum sampling rate of the AD7985BCPZ-RL7 is 1 MSPS. The limitation is due to the internal clock frequency and the settling time of the analog-to-digital converter. The user should ensure that the input signal is properly filtered and settled before the conversion to achieve accurate results.
  • The AD7985BCPZ-RL7 has a power-on reset circuit that ensures the device is in a known state after power-up. The user should ensure that the power supplies are ramped up slowly and the digital interface is not accessed until the device is fully powered up. During power-down, the user should ensure that the power supplies are ramped down slowly to prevent any unwanted conversions.
  • The AD7985BCPZ-RL7 is a high-performance analog-to-digital converter that can dissipate up to 150mW of power. The user should ensure good thermal conductivity between the device and the PCB, and provide adequate airflow to prevent overheating. The device is specified to operate over a temperature range of -40°C to 125°C, and the user should ensure that the device is operated within this range for reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7985BCPZ-RL7 Overview

Use the download button to access the AD7985BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD798, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
