AD7985BCPZ - Analog Devices

Description: Analog Devices AD7985BCPZ, 16 bit Serial ADC, Differential Input, 20-Pin LFCSP VQ

Download AD7985BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

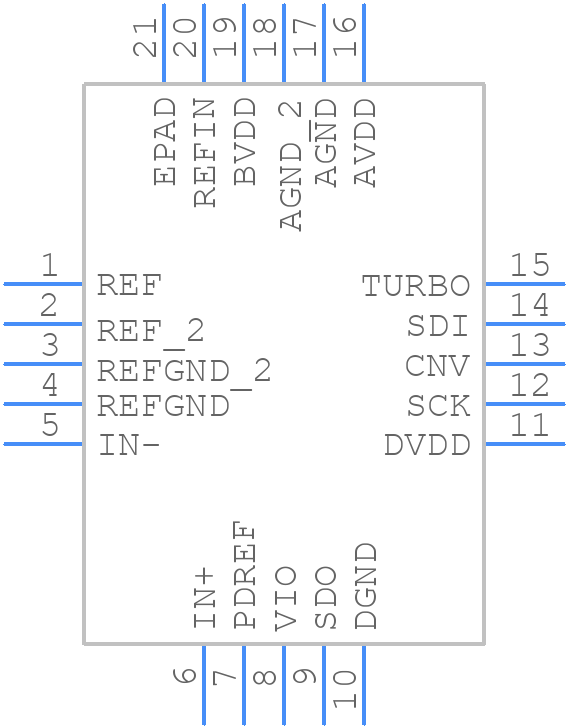

AD7985BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7985BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P400X400X100-21N
click to zoom

AD7985BCPZ Details

  • Manufacturer Part Number:

    AD7985BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.111 V

  • Conversion Time-Max:

    0.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7985BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD7985BCPZ has an internal calibration circuit that calibrates the ADC during power-up. However, it's recommended to perform an external calibration by applying a known voltage to the input and adjusting the offset and gain registers accordingly.
  • The maximum sampling rate of the AD7985BCPZ is 1 MSPS. However, the power consumption increases with the sampling rate. At 1 MSPS, the typical power consumption is around 15 mW. To reduce power consumption, consider reducing the sampling rate or using the power-down mode.
  • The AD7985BCPZ outputs 16-bit data in a twos-complement format. The output data is available on the D[15:0] pins. The data is output in a serial format, with the most significant bit (MSB) first. The output data can be read using a microcontroller or an FPGA.
  • The recommended input voltage range for the AD7985BCPZ is 0 to VREF (typically 2.5V or 5V). The input voltage range affects the accuracy of the conversions, and it's recommended to keep the input voltage within the specified range to ensure accurate conversions.
