AD7986BCPZ-RL7 - Analog Devices

Description: 15 mW ADC

Download AD7986BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

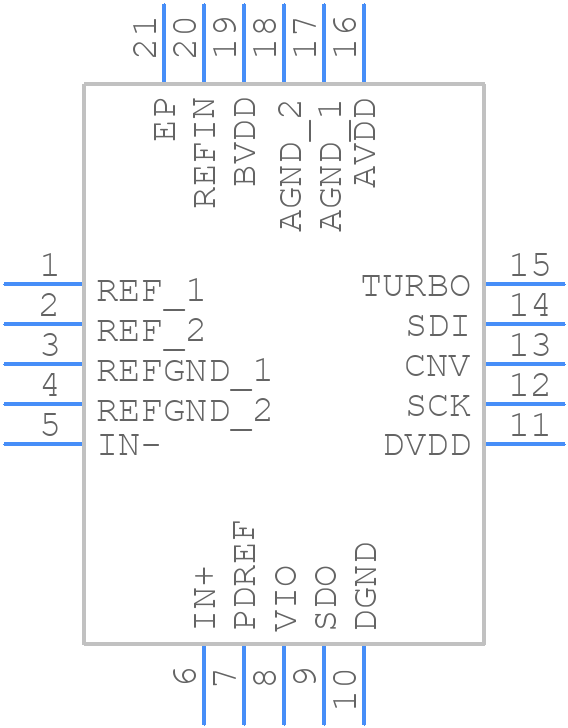

AD7986BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7986BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-10)
click to zoom
3D Models
AD7986BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-10)
click to zoom

AD7986BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7986BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7986BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD7986BCPZ-RL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an offset calibration register that can be used to trim the offset error. It is recommended to perform a self-calibration cycle after power-up and before taking any conversions.
  • The maximum sampling rate of the AD7986BCPZ-RL7 is 1 MSPS. The power consumption increases with the sampling rate, and at 1 MSPS, the typical power consumption is around 15 mW. However, the power consumption can be reduced by using the power-down mode between conversions.
  • The AD7986BCPZ-RL7 outputs 16-bit data in a twos-complement format. The output data can be read through the SPI interface, and the device has a built-in FIFO that can store up to 16 conversion results. The output data can be handled by a microcontroller or a dedicated ADC interface IC.
  • The AD7986BCPZ-RL7 has an operating temperature range of -40°C to 125°C. The device has a typical temperature coefficient of ±0.5 ppm/°C, which means that the accuracy of the conversions can be affected by temperature changes. However, the device has an internal temperature sensor that can be used to monitor the temperature and compensate for any errors.
