AD7988-1BCPZ-RL - Analog Devices

Description: Analog to Digital Converters - ADC 100ksps, low power, 16 bit uSAR

Download AD7988-1BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

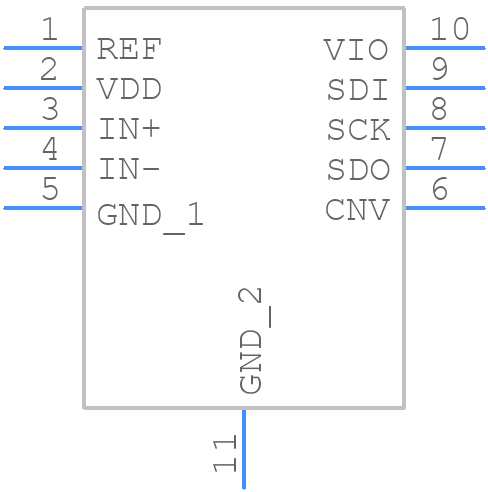

AD7988-1BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7988-1BCPZ-RL - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
AD7988-1BCPZ-RL - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

AD7988-1BCPZ-RL Details

  • Manufacturer Part Number:

    AD7988-1BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    9.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00191%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7988-1BCPZ-RL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD7988-1BCPZ-RL has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an offset calibration register that can be used to trim the offset error. It is recommended to perform a self-calibration cycle after power-up and before taking any conversions.
  • The maximum sampling rate of the AD7988-1BCPZ-RL is 1 MSPS. The power consumption increases with the sampling rate, and at 1 MSPS, the typical power consumption is around 15 mW. However, the power consumption can be reduced by using the power-down mode between conversions.
  • Common error sources include incorrect pin connections, improper power supply, and incorrect register settings. To troubleshoot, check the pin connections, power supply, and register settings. Also, check the device's status register for any error flags. If the issue persists, try resetting the device or performing a self-calibration cycle.
  • Yes, the AD7988-1BCPZ-RL can be used in a multi-channel application. To configure it, connect the multiple channels to the device's analog input pins, and use the channel select register to select the desired channel for conversion. The device can also be used in a pseudo-differential mode to reduce the number of pins required for multi-channel applications.
