AD7988-5BCPZ-RL7 - Analog Devices

Description: 1-Channel Single ADC SAR 500ksps 16-bit Serial 10-Pin LFCSP EP T/R

Download AD7988-5BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

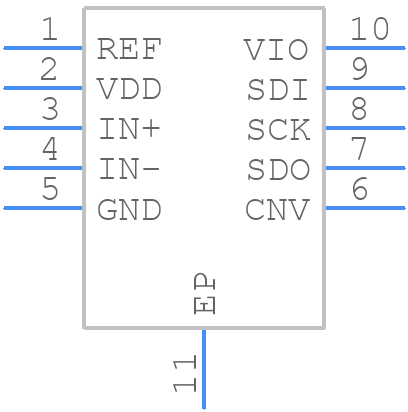

Symbol
AD7988-5BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7988-5BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
AD7988-5BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

AD7988-5BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7988-5BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00191%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7988-5BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the ADC input pins away from the digital signals and use a low-pass filter to reduce noise.
  • The AD7988-5BCPZ-RL7 has an internal calibration circuit that calibrates the ADC during power-up. No external calibration is required. However, it's recommended to follow the datasheet guidelines for power-up sequencing and voltage supply stabilization to ensure proper calibration.
  • The AD7988-5BCPZ-RL7 can achieve a maximum sampling rate of 1 MSPS. However, the actual sampling rate may be limited by the system's clock frequency, the input signal bandwidth, and the settling time of the ADC's internal circuitry.
  • The AD7988-5BCPZ-RL7 outputs 16-bit digital data in a binary two's complement format. The recommended data processing and formatting involve using a microcontroller or FPGA to read the data, perform any necessary data processing, and format the data for further analysis or transmission.
  • The AD7988-5BCPZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and avoiding thermal gradients.
