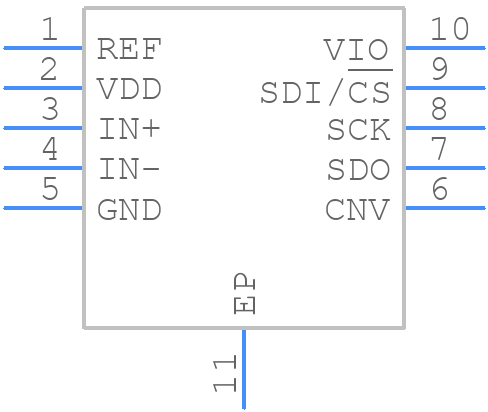

AD7989-1BCPZ-R2 - Analog Devices

AD7989-1BCPZ-R2 Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD7989-1BCPZ-R2 to achieve optimal performance?
  The recommended layout and routing for the AD7989-1BCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, the device should be placed close to the analog signal source, and the digital output traces should be routed away from the analog input traces to minimize digital noise coupling.
• How do I handle the power-up and power-down sequencing of the AD7989-1BCPZ-R2?
  The AD7989-1BCPZ-R2 requires a specific power-up and power-down sequencing to ensure proper operation. The recommended sequence is to power up the analog supply (VCC) first, followed by the digital supply (VDD), and then the clock signal. During power-down, the sequence should be reversed.
• What is the maximum sampling rate that can be achieved with the AD7989-1BCPZ-R2?
  The maximum sampling rate of the AD7989-1BCPZ-R2 is 1 MSPS, but this can be affected by the clock frequency, analog input frequency, and other system-level factors. It's recommended to consult the datasheet and application notes for specific guidance on achieving the maximum sampling rate.
• How do I calibrate the AD7989-1BCPZ-R2 to achieve optimal accuracy?
  The AD7989-1BCPZ-R2 does not require calibration, as it is a self-calibrating ADC. However, it's recommended to perform a system-level calibration to account for any offsets or gain errors in the analog signal chain. This can be done using a known reference signal and adjusting the system gain and offset accordingly.
• What is the recommended clock source for the AD7989-1BCPZ-R2?
  The recommended clock source for the AD7989-1BCPZ-R2 is a low-jitter, high-frequency clock signal (e.g., 10 MHz or higher). A crystal oscillator or a high-quality clock generator is recommended to ensure optimal performance and minimize clock jitter.
