AD7989-1BRMZ-RL7 - Analog Devices

Description: Single Channel Single ADC SAR 100ksps 18-bit Serial 10-Pin MSOP T/R

Download AD7989-1BRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

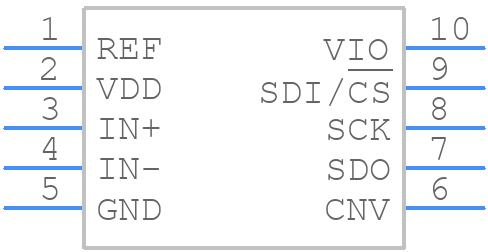

AD7989-1BRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7989-1BRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD7989-1BRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD7989-1BRMZ-RL7 Details

  • Manufacturer Part Number:

    AD7989-1BRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    10 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0008%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7989-1BRMZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7989-1BRMZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the ADC close to the analog signal source and use a low-pass filter to reduce noise. Refer to the AD7989-1BRMZ-RL7 evaluation board layout as a reference.
  • The AD7989-1BRMZ-RL7 does not require calibration, as it is a self-calibrating ADC. However, it's recommended to perform a system-level calibration to account for any offsets or gains in the signal chain. This can be done by applying a known input voltage and measuring the output code, then adjusting the system gain and offset accordingly.
  • The maximum sampling rate of the AD7989-1BRMZ-RL7 is 1 MSPS. The power consumption of the ADC increases with the sampling rate, but the exact power consumption at maximum sampling rate can be calculated using the formula provided in the datasheet. Typically, the power consumption at 1 MSPS is around 15 mW.
  • The AD7989-1BRMZ-RL7 has internal overvoltage protection on the analog input pins, which can withstand voltages up to ±20 V without damage. However, it's still recommended to use external protection circuitry, such as clamping diodes or resistors, to prevent overvoltage conditions from occurring in the first place.
  • The recommended power supply decoupling scheme for the AD7989-1BRMZ-RL7 involves using a combination of ceramic and electrolytic capacitors to filter out noise and ripple on the power supply lines. A 10 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel are recommended for the AVDD and DVDD power supply pins.
