AD7989-5BRMZ - Analog Devices

Description: 18-Bit, 500 kSPS PulSAR ADCs in MSOP/LFCSP

Download AD7989-5BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

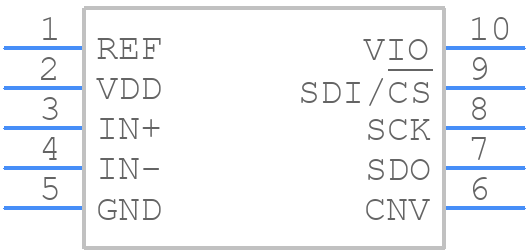

AD7989-5BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7989-5BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)//
click to zoom
3D Models
AD7989-5BRMZ - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)//
click to zoom

AD7989-5BRMZ Details

  • Manufacturer Part Number:

    AD7989-5BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0008%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7989-5BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible.
  • The AD7989-5BRMZ has an internal calibration circuit that calibrates the device during power-up. No external calibration is required. However, if the user wants to perform an external calibration, it can be done by applying a known input voltage and adjusting the offset and gain to achieve the desired accuracy.
  • The maximum sampling rate of the AD7989-5BRMZ is 1 MSPS. The limitation is due to the internal clock frequency and the settling time of the analog-to-digital converter. The user should ensure that the input signal is properly filtered and settled before sampling.
  • The AD7989-5BRMZ outputs 16-bit data in a serial format. The output data is in a two's complement format, with the most significant bit (MSB) first. The user should ensure that the microcontroller or processor is configured to receive the data in the correct format.
  • The typical power consumption of the AD7989-5BRMZ is 15 mW at 1 MSPS. To minimize power consumption, the user can reduce the sampling rate, use the power-down mode, and optimize the system design to minimize the number of conversions.
