AD7995YRJZ-0500RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 10-BIT 4-CHANNEL I2C ADC IN SOT IC

Download AD7995YRJZ-0500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

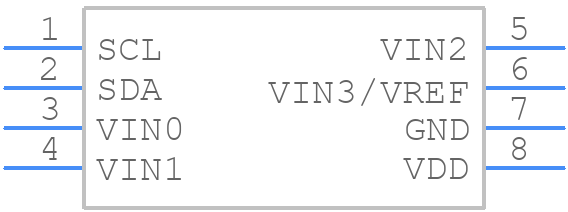

Symbol
AD7995YRJZ-0500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7995YRJZ-0500RL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - AD5060BRJZ-1REEL7
click to zoom
3D Models
AD7995YRJZ-0500RL7 - Analog Devices - 3D model - SOT23 (8-Pin) - AD5060BRJZ-1REEL7
click to zoom

AD7995YRJZ-0500RL7 Details

  • Manufacturer Part Number:

    AD7995YRJZ-0500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0391%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    1.6 mm

AD7995YRJZ-0500RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the analog input traces as short as possible.
  • The AD7995YRJZ-0500RL7 has an internal calibration circuit that calibrates the device during power-up. However, it's recommended to perform an external calibration using an external voltage reference and a calibration resistor to ensure accurate conversions.
  • The maximum sampling rate of the AD7995YRJZ-0500RL7 is 250 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • If the AD7995YRJZ-0500RL7 is not converting the analog input signal correctly, check the analog input signal range, the reference voltage, and the clock frequency. Also, ensure that the device is properly powered and that the digital output is not being corrupted by noise or interference.
  • Yes, the AD7995YRJZ-0500RL7 can be used in a multi-channel application. The device has a built-in multiplexer that allows it to convert multiple analog input channels. The device can be configured to convert up to 4 channels in a sequential manner.
