AD7999ARJZ-1RL - Analog Devices

Description: 4-Channel I2C-Compatible Interface in 8-Lead SOT-23

Download AD7999ARJZ-1RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

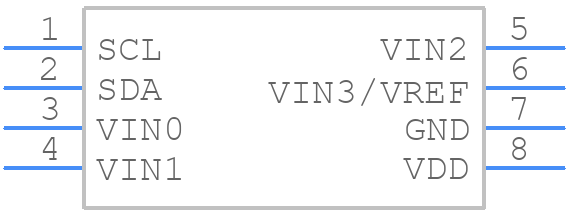

Symbol
AD7999ARJZ-1RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7999ARJZ-1RL - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RJ-8)
click to zoom
3D Models
AD7999ARJZ-1RL - Analog Devices - 3D model - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RJ-8)
click to zoom

AD7999ARJZ-1RL Details

  • Manufacturer Part Number:

    AD7999ARJZ-1RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178-BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD7999ARJZ-1RL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital signals separate, use a solid ground plane, and keep the analog input traces as short as possible. Additionally, it's recommended to use a bypass capacitor between the VDD and GND pins to filter out noise.
  • The AD7999ARJZ-1RL has an internal calibration circuit that is performed at power-up. However, it's recommended to perform an external calibration by writing to the calibration register to ensure accurate conversions. The calibration procedure is described in the datasheet.
  • The maximum sampling rate of the AD7999ARJZ-1RL is 1 MSPS (million samples per second). However, this rate can be affected by the clock frequency, conversion mode, and other factors. It's recommended to consult the datasheet for more information on the sampling rate and conversion timing.
  • Yes, the AD7999ARJZ-1RL can be used in a multi-channel application. The device has a sequencer that allows it to sequence through multiple channels. The sequencer can be programmed to sequence through up to 8 channels. The device also has a channel select pin that allows the user to select the channel to be converted.
  • The power consumption of the AD7999ARJZ-1RL is typically around 15 mW at 1 MSPS. The power consumption can be minimized by reducing the clock frequency, using the power-down mode, and optimizing the conversion mode. The device also has a shutdown pin that can be used to power down the device when not in use.
