AD800-52BRZRL - Analog Devices

Description: Timers & Support Products 52Mbps Clock & Data Recovery IC

Download AD800-52BRZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

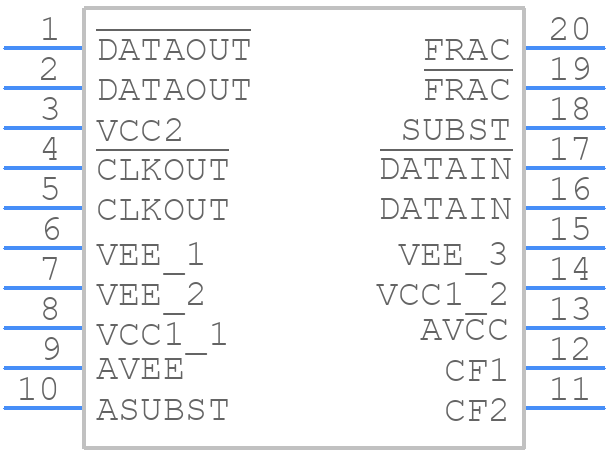

Symbol
AD800-52BRZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD800-52BRZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC] Wide Body (R-20)-4
click to zoom
3D Models
AD800-52BRZRL - Analog Devices - 3D model - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC] Wide Body (R-20)-4
click to zoom

AD800-52BRZRL Details

  • Manufacturer Part Number:

    AD800-52BRZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    180 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD800-52BRZRL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD800-52BRZRL involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR capacitor for decoupling, and keep the input and output impedance matched. Also, avoid capacitive loading on the output and ensure the feedback network is properly terminated.
  • The AD800-52BRZRL can operate from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
  • Yes, the AD800-52BRZRL can be used in a single-supply application, but the input common-mode range is limited to VCC - 1.5V. The output voltage swing will also be reduced in single-supply operation.
  • To reduce EMI, use a shielded enclosure, keep the input and output traces short, and use a common-mode choke or ferrite bead on the output. Also, ensure the PCB layout is well-grounded and use a low-pass filter on the output if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD800-52BRZRL Overview

Use the download button to access the AD800-52BRZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD800, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
