AD80066KRSZRL - Analog Devices

Description: Analog Front End - AFE Complete 16B CCD/ CIS Signal Processor

Download AD80066KRSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

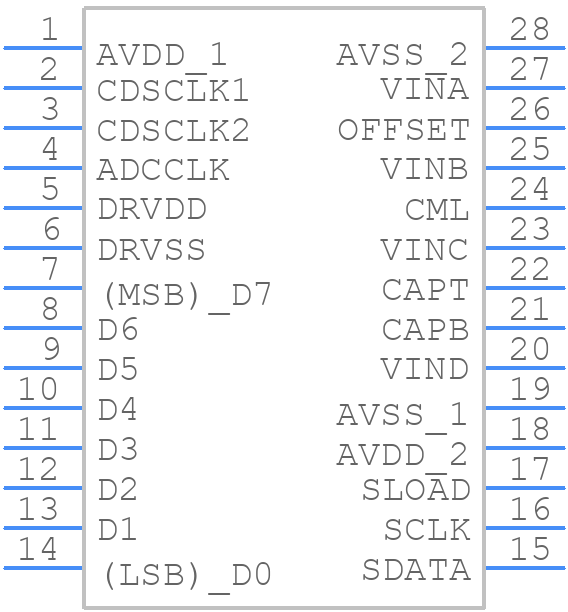

Symbol
AD80066KRSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD80066KRSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SOIC)
click to zoom
3D Models
AD80066KRSZRL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SOIC)
click to zoom

AD80066KRSZRL Details

  • Manufacturer Part Number:

    AD80066KRSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Address Bus Width:

    4

  • Barrel Shifter:

    NO

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    24 MHz

  • External Data Bus Width:

    8

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

AD80066KRSZRL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD80066KRSZRL involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input termination depends on the source impedance and the desired signal integrity. For a 50Ω source, a 50Ω termination is recommended. For a high-impedance source, a 1kΩ to 10kΩ termination may be suitable. The datasheet provides more information on input termination.
  • The maximum power dissipation for the AD80066KRSZRL is 1.4W. However, this can be affected by the operating conditions, such as temperature and supply voltage. It's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits.
  • Yes, the AD80066KRSZRL can be used in a non-inverting configuration. However, this requires a different set of external components and a modified PCB layout. The datasheet provides more information on non-inverting configurations.
  • To minimize EMI, use a shielded enclosure, keep the AD80066KRSZRL away from other noisy components, and use a common-mode choke or ferrite beads on the input and output lines. Additionally, ensure good PCB layout practices, such as keeping the signal traces short and away from the edges of the board.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD80066KRSZRL Overview

Use the download button to access the AD80066KRSZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD800, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
