AD8013ANZ - Analog Devices

Description: AD8013ANZ, Video Amplifier 3-channel 400V/μs, 14-Pin PDIP

Download AD8013ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

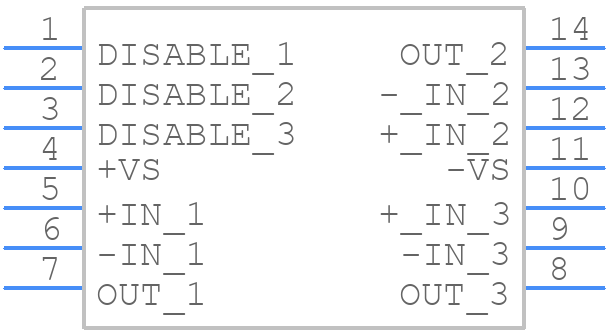

AD8013ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

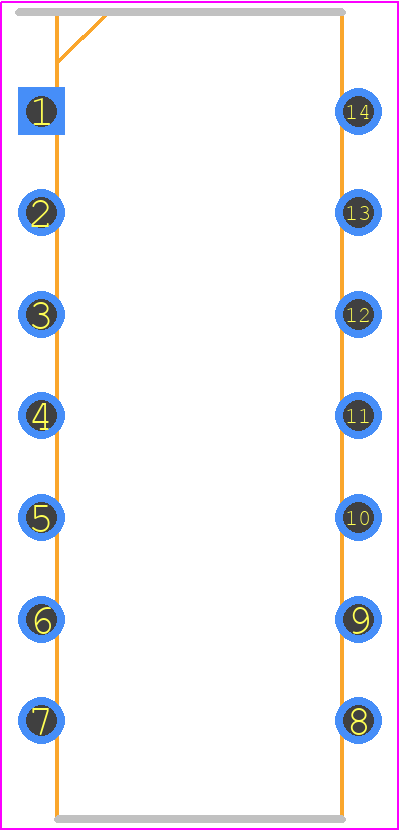

AD8013ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14 _1
click to zoom
3D Models
AD8013ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-14 _1
click to zoom

AD8013ANZ Details

  • Manufacturer Part Number:

    AD8013ANZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO WORK WITH SINGLE 5V SUPPLY

  • Bandwidth-Nom:

    140000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER
