AD8013ARZ-14 - Analog Devices

Description: Analog Devices AD8013ARZ-14, Video Amplifier IC 3-channel, 140MHz 1000V/μs Rail to Rail O/P, 14-Pin SOIC

Download AD8013ARZ-14 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

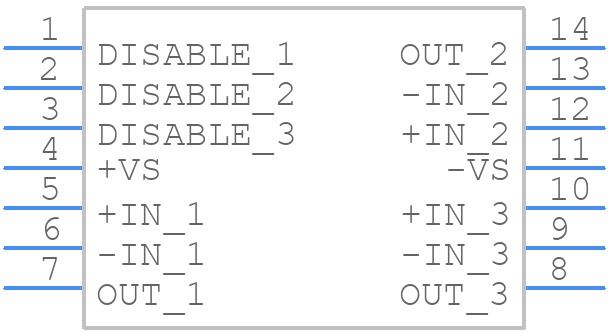

AD8013ARZ-14 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8013ARZ-14 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
AD8013ARZ-14 - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

AD8013ARZ-14 Details

  • Manufacturer Part Number:

    AD8013ARZ-14

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO WORK WITH SINGLE 5V SUPPLY

  • Bandwidth-Nom:

    140000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    2.1 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AD8013ARZ-14 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the AD8013ARZ-14 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
  • To ensure stability in a unity-gain buffer configuration, it's recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input to compensate for the op-amp's internal capacitance and ensure stability.
  • To minimize noise and EMI, it's recommended to keep the input and output traces short and away from each other, use a solid ground plane, and avoid running sensitive traces near the op-amp's power pins. Additionally, decoupling capacitors should be placed close to the op-amp's power pins.
  • The AD8013ARZ-14 is rated for operation from -40°C to 125°C, but its performance may degrade at higher temperatures. If you need to operate the op-amp in a high-temperature environment, consider using a thermally-enhanced package or a different op-amp with a higher temperature rating.
  • When choosing resistors for the feedback network, consider the op-amp's input impedance, output impedance, and desired gain. Use resistors with a low temperature coefficient (TCR) and a high power rating to minimize thermal noise and ensure stability.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD8013ARZ-14 Overview

Use the download button to access the AD8013ARZ-14 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD801, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
