AD8122ACPZ - Analog Devices

Description: Analog Devices AD8122ACPZ, Differential Line Receiver 3-channel 40-Pin LFCSP

Download AD8122ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

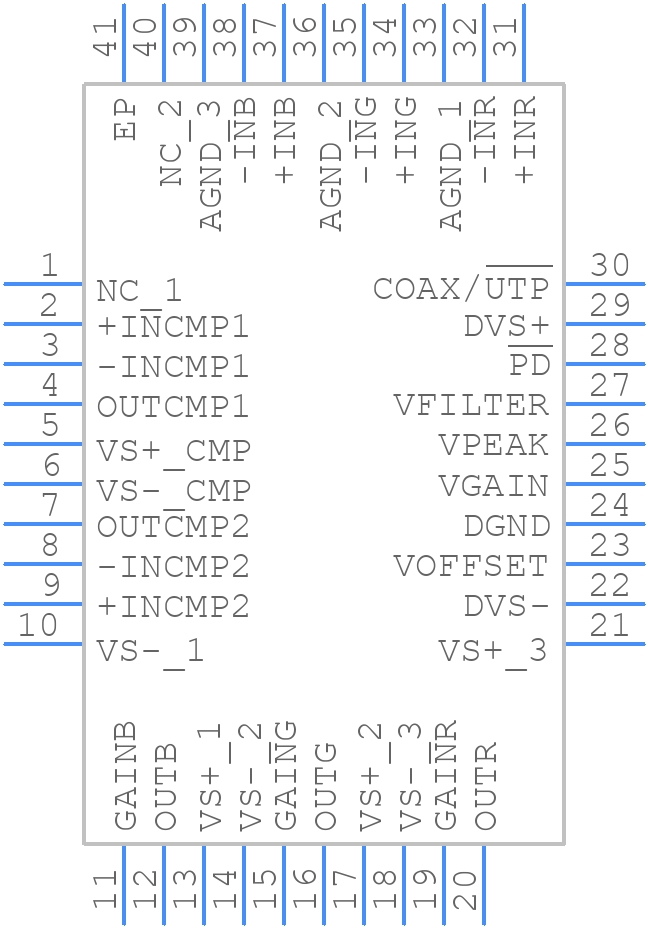

Symbol
AD8122ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8122ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-40-12)
click to zoom
3D Models
AD8122ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-40-12)
click to zoom

AD8122ACPZ Details

  • Manufacturer Part Number:

    AD8122ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD8122ACPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD8122ACPZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to keep the analog and digital grounds separate.
  • To optimize the gain and bandwidth of the AD8122ACPZ, you can adjust the gain resistors (Rf and Rg) and the compensation capacitor (Cc) according to the datasheet equations. Additionally, you can use the ADIsimOpAmp tool from Analog Devices to simulate and optimize the amplifier's performance for your specific application.
  • The maximum allowable input voltage swing for the AD8122ACPZ is typically limited by the power supply voltage and the input common-mode range. Exceeding this limit can cause the amplifier to saturate or oscillate. It's recommended to keep the input voltage swing within the specified range to ensure optimal performance and stability.
  • The AD8122ACPZ has built-in EMI and RFI filtering capabilities, including a high-frequency common-mode rejection ratio (CMRR) and a low-pass filter in the signal path. Additionally, proper PCB layout and shielding can help to further reduce the effects of EMI and RFI on the amplifier's performance.
  • The recommended power-up sequence for the AD8122ACPZ is to apply the power supply voltage (VCC) before applying the input signals. During power-down, it's recommended to remove the input signals before removing the power supply voltage. This helps to prevent damage or instability due to voltage transients or input signal overshoot.
