AD8123ACPZ-R7 - Analog Devices

Description: Video Amplifiers Triple Equalizer

Download AD8123ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

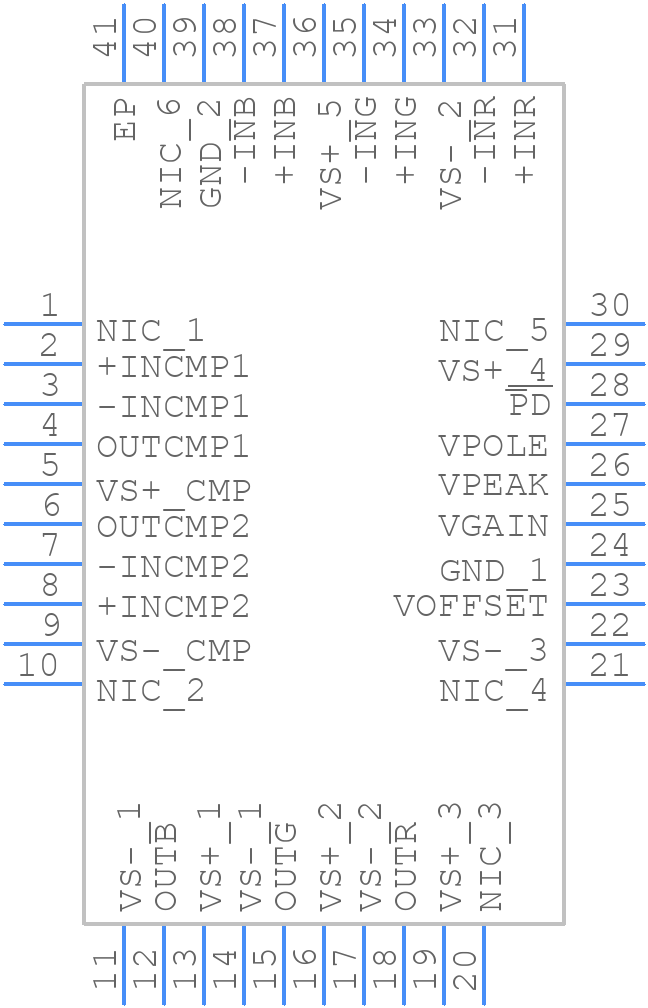

AD8123ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8123ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-10_2022
click to zoom
3D Models
AD8123ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-10_2022
click to zoom

AD8123ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8123ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6MM, ROHS COMPLIANT, MO-220VJJD-2, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

AD8123ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8123ACPZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 0.1uF and 10uF capacitors, respectively. Also, ensure the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
  • The AD8123ACPZ-R7 can handle input voltages up to ±6V without damage. However, it's recommended to limit the input voltage to ±5V to ensure optimal performance and prevent damage from overvoltage.
  • To troubleshoot common issues, check the PCB layout for noise and signal integrity issues, ensure proper power supply decoupling, and verify that the input and output impedances are matched. Also, check for component tolerances and ensure that the device is operated within the recommended temperature range.
