- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD8124ACPZ
- Part Number AD8124ACPZ
- Manufacturer Analog Devices
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P600X600X100-41N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8124ACPZ Details
-
Manufacturer Part Number:
AD8124ACPZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
6 X 6 MM, MO-220-VJJD-2, LFCSP-40
-
Pin Count:
40
-
Manufacturer Package Code:
CP-40-10
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD8124ACPZ Frequently Asked Questions (FAQs)
-
A good layout and routing practice for the AD8124ACPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use shielding to reduce electromagnetic interference (EMI).
-
To optimize the gain and bandwidth of the AD8124ACPZ, you can adjust the gain resistors (Rg) and the feedback capacitors (Cf) according to the datasheet equations. Additionally, you can use the device's adjustable gain feature to fine-tune the gain for your specific application. It's also important to consider the input signal frequency and amplitude when selecting the gain and bandwidth settings.
-
For the AD8124ACPZ, it's recommended to use a combination of ceramic and electrolytic capacitors for power supply decoupling and filtering. A 10uF ceramic capacitor and a 1uF electrolytic capacitor in parallel can provide effective decoupling and filtering. Additionally, it's recommended to use a low-ESR capacitor and to place the decoupling capacitors close to the device's power pins.
-
To troubleshoot common issues with the AD8124ACPZ, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the input signals are within the recommended range and that the gain and bandwidth settings are correct. Check for any signs of oscillation or instability, such as excessive noise or ringing, and adjust the gain and bandwidth settings accordingly. If the issue persists, consult the datasheet and application notes for further guidance.
-
For the AD8124ACPZ, it's recommended to use a heat sink with a thermal resistance of less than 10°C/W to ensure reliable operation. The device's thermal pad should be connected to a solid ground plane or a heat sink to dissipate heat effectively. Additionally, it's recommended to keep the device away from other heat sources and to use a thermal interface material (TIM) to improve heat transfer.
Trust Checks
System Verified
AD8124ACPZ Overview

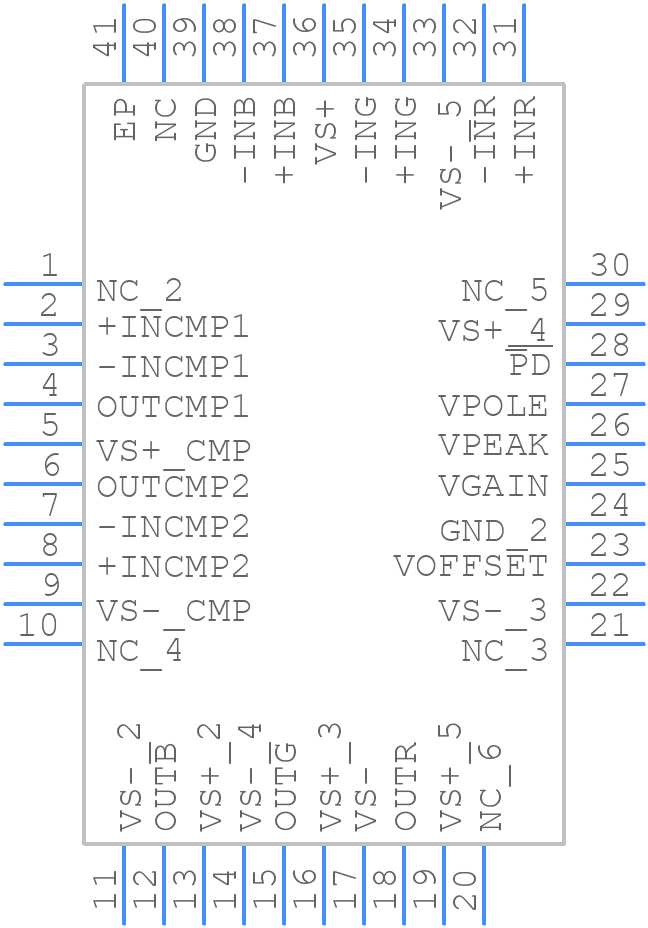

Use the download button to access the AD8124ACPZ schematic symbol, PCB footprint, and 3D model.
