AD8137WYCPZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8137WYCPZ-R7 - Differential Amplifier, 1 Amplifiers, 700 µV, 76 MHz, -40 °C, 125 °C

Download AD8137WYCPZ-R7 Model

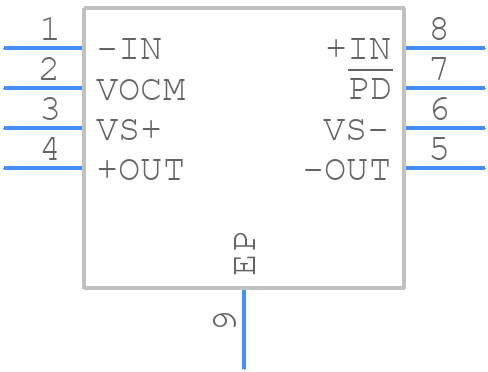

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8137WYCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-13 (LFCSP)
click to zoom
3D Models
AD8137WYCPZ-R7 - Analog Devices  - 3D model - Small Outline No-lead - CP-8-13 (LFCSP)
click to zoom

AD8137WYCPZ-R7 Details

  • Manufacturer Part Number:

    AD8137WYCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-229WEED, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1 µA

  • Bias Current-Max (IIB) @25C:

    1.1 µA

  • Common-mode Reject Ratio-Min:

    66 dB

  • Common-mode Reject Ratio-Nom:

    79 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    450 V/us

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3 mm

AD8137WYCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8137WYCPZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the device should be decoupled with a 10uF capacitor between the VCC and GND pins, and a 100nF capacitor between the VCC and GND pins for each supply pin. The device should also be operated within the recommended operating conditions.
  • The maximum allowable input voltage for the AD8137WYCPZ-R7 is ±10V, which is the maximum differential input voltage. Exceeding this voltage can cause damage to the device.
  • The gain of the AD8137WYCPZ-R7 can be calculated using the formula: Gain = (Rf/Rg) x (1 + (Rb/Ra)), where Rf, Rg, Rb, and Ra are the external resistors connected to the device. The gain can be adjusted by selecting the appropriate values for these resistors.
  • The typical power consumption of the AD8137WYCPZ-R7 is 12mA at a supply voltage of ±5V. However, this value can vary depending on the specific application and operating conditions.
