AD813ANZ - Analog Devices

Description: Single Supply, Low Power Triple Video Amplifier

Download AD813ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

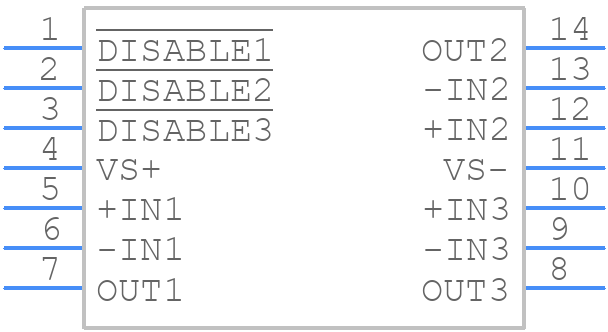

Symbol
AD813ANZ - Analog Devices - PCB symbol
click to zoom

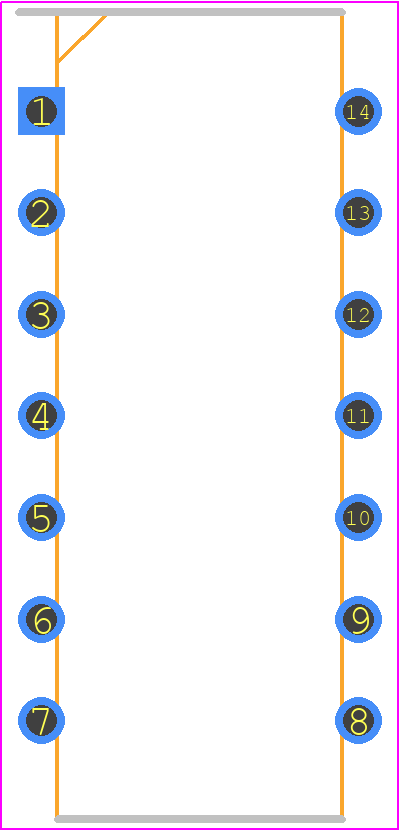

PCB Footprints
AD813ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14_2020
click to zoom
3D Models
AD813ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-14_2020
click to zoom

AD813ANZ Details

  • Manufacturer Part Number:

    AD813ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    N-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 2.4V TO 36V SINGLE SUPPLY

  • Bandwidth-Nom:

    100000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    6.02 dB

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    20.1 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD813ANZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the positive supply voltage (VCC) before the negative supply voltage (VEE). This ensures that the internal circuitry is properly biased and prevents potential latch-up conditions.
  • To minimize noise and distortion, it is recommended to keep the input and output traces as short as possible, use a solid ground plane, and keep the power supply traces away from the signal traces. Additionally, use a low-ESR capacitor for decoupling and place it as close to the device as possible.
  • The AD813ANZ can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause instability or oscillations.
  • The input bias current of the AD813ANZ can be compensated for by adding a resistor in series with the input signal, with a value equal to the parallel combination of the input impedance and the feedback impedance. This helps to cancel out the effect of the input bias current.
  • The recommended operating temperature range for the AD813ANZ is -40°C to +125°C. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD813ANZ Overview

Use the download button to access the AD813ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD813, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
