AD813ARZ-14-REEL - Analog Devices

Description: 4.5mA Triple-Bus 100MHz SOIC-14 Video Amplifiers ROHS , 125MHz , 2.4V ~ 36V , 5mV , 1.7 uA , -40C ~ +85C

Download AD813ARZ-14-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

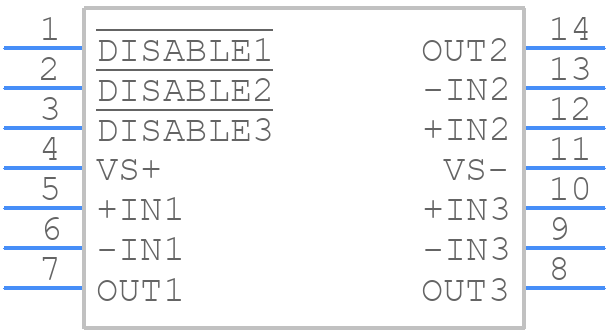

AD813ARZ-14-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

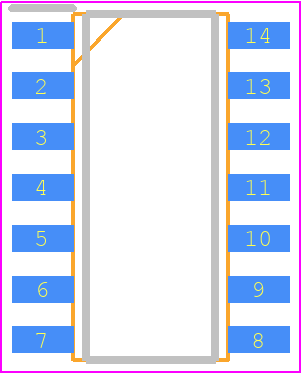

AD813ARZ-14-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14
click to zoom
3D Models
AD813ARZ-14-REEL - Analog Devices - 3D model - Small Outline Packages - R-14
click to zoom

AD813ARZ-14-REEL Details

  • Manufacturer Part Number:

    AD813ARZ-14-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 2.4V TO 36V SINGLE SUPPLY

  • Bandwidth-Nom:

    100000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    6.02 dB

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20.1 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AD813ARZ-14-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD813ARZ-14-REEL involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output impedances are matched, and the gain is set within the recommended range. Also, consider adding a small capacitor (e.g., 10nF) in parallel with the feedback resistor to improve stability.
  • The AD813ARZ-14-REEL is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider the specific application requirements and potential thermal management needs.
  • Yes, the AD813ARZ-14-REEL can be used in single-supply applications. However, the input common-mode voltage range is limited to VCC - 1.5V to VCC + 0.5V. Ensure that the input signal is within this range to maintain optimal performance.
  • The AD813ARZ-14-REEL has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD813ARZ-14-REEL Overview

Use the download button to access the AD813ARZ-14-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD813, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
