AD813ARZ-14-REEL7 - Analog Devices

Description: Single Supply, Low Power Triple Video Amplifier

Download AD813ARZ-14-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

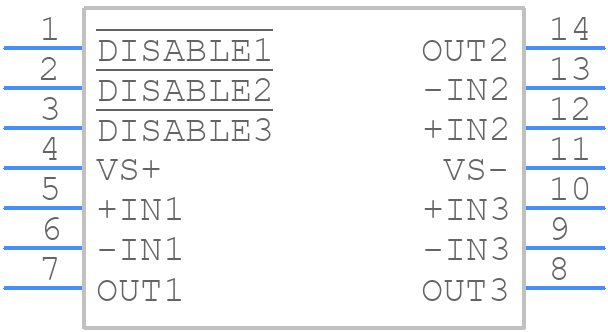

AD813ARZ-14-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

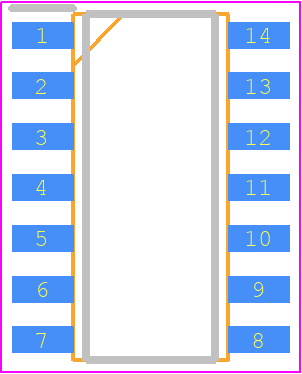

AD813ARZ-14-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14
click to zoom
3D Models
AD813ARZ-14-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-14
click to zoom

AD813ARZ-14-REEL7 Details

  • Manufacturer Part Number:

    AD813ARZ-14-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 2.4V TO 36V SINGLE SUPPLY

  • Bandwidth-Nom:

    100000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    6.02 dB

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20.1 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AD813ARZ-14-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD813ARZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the signal sources. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to use a compensation capacitor (Cc) between the output and the inverting input, and choose a value that is within the recommended range. Also, ensure that the gain resistors (Rf and Rg) are matched and have a low tolerance.
  • The AD813ARZ can operate over a temperature range of -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
  • Yes, the AD813ARZ can be used as a single-ended amplifier by tying one of the inputs to a fixed voltage (e.g., ground) and using the other input as the signal input. However, this configuration may not provide the same level of common-mode rejection as a differential amplifier.
  • It's recommended to use a 10uF capacitor in parallel with a 100nF capacitor to decouple the power supply pins (VCC and GND) of the AD813ARZ. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD813ARZ-14-REEL7 Overview

Use the download button to access the AD813ARZ-14-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD813, or try a keyword search, such as Audio/Video Amplifiers
