AD8141ACPZ-R2 - Analog Devices

Description: Analog Devices AD8141ACPZ-R2, Video Amplifier 3-channel, 255MHz 1150V/μs Differential O/P, 24-Pin LFCSP WQ

Download AD8141ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

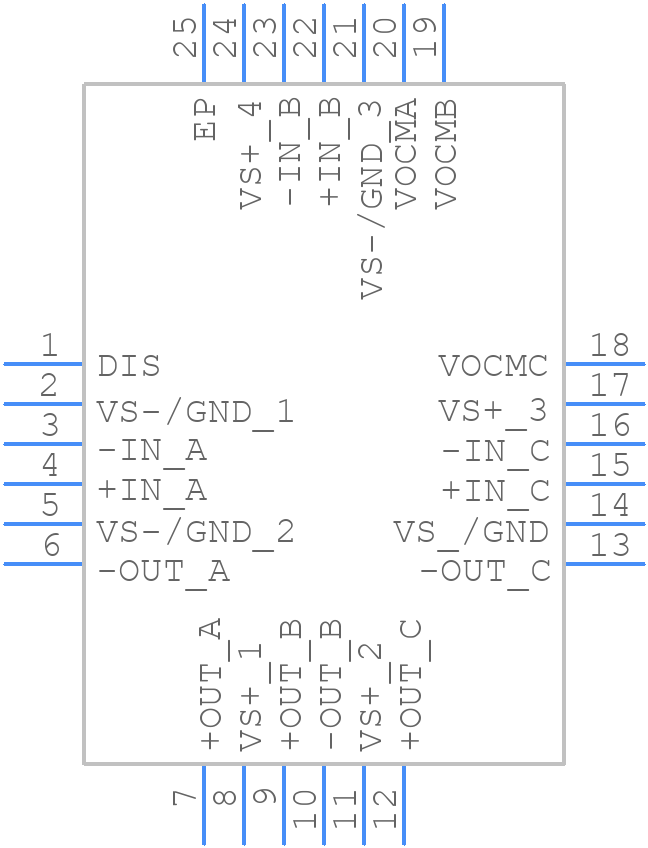

AD8141ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8141ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-8
click to zoom
3D Models
AD8141ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-8
click to zoom

AD8141ACPZ-R2 Details

  • Manufacturer Part Number:

    AD8141ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    3

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD8141ACPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8141ACPZ-R2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the AD8141 evaluation board layout for a reference design.
  • The AD8141ACPZ-R2 is specified to operate from -40°C to 125°C. Ensure that the device is properly heatsinked and that the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the device when designing the system.
  • The recommended input impedance for the AD8141ACPZ-R2 is 50 ohms. This ensures maximum power transfer and minimizes signal reflections. However, the device can operate with input impedances up to 100 ohms with some degradation in performance.
  • Yes, the AD8141ACPZ-R2 can be used as a unity gain buffer. However, it's essential to ensure that the output is properly terminated to avoid oscillations. A 50 ohm resistor in series with the output and a 50 ohm load is recommended.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or coupling between traces. Ensure that the input and output are properly terminated, and that the power supply is clean and well-regulated. Also, verify that the device is operating within its specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8141ACPZ-R2 Overview

Use the download button to access the AD8141ACPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD814, or try a keyword search, such as Line Driver or Receivers
