AD8180ANZ - Analog Devices

Description: Analog Devices AD8180ANZ, Multiplexer Single 2 x 1, 8-Pin PDIP

Download AD8180ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

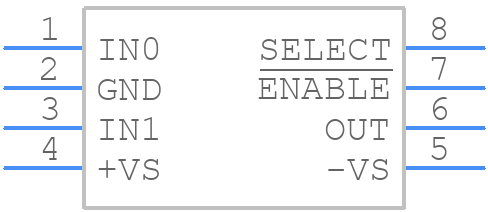

AD8180ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8180ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8_2022
click to zoom
3D Models
AD8180ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8_2022
click to zoom

AD8180ANZ Details

  • Manufacturer Part Number:

    AD8180ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -4 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    89 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    5 ns

  • Switch-on Time-Max:

    10 ns

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8180ANZ Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD8180ANZ. It is recommended to use a star-ground configuration, with the op-amp's ground pin connected to a central ground point. Keep the input and output traces short and away from noise sources. Use a solid ground plane and decouple the power supplies with capacitors.
  • The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth. A good starting point is to use 1 kΩ for Rf and 1 kΩ to 10 kΩ for Rg. The ratio of Rf to Rg determines the gain. For high gains, use smaller resistors to minimize noise and maximize bandwidth.
  • The AD8180ANZ can drive capacitive loads up to 1 nF without oscillation. However, it's recommended to use a series resistor (Rs) to dampen the load and prevent oscillation. The value of Rs depends on the load capacitance and the desired bandwidth.
  • To reduce noise and distortion, use a low-noise power supply, decouple the power supplies with capacitors, and use a solid ground plane. Keep the input and output traces short and away from noise sources. Use a shielded enclosure and consider using a noise-reducing component like a ferrite bead or a common-mode choke.
  • The AD8180ANZ has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. This feature helps prevent damage to the device due to overheating.
