AD8182ANZ - Analog Devices

Description: AD8182ANZ, Multiplexer Dual 2:1, 14-Pin, PDIP, 2

Download AD8182ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

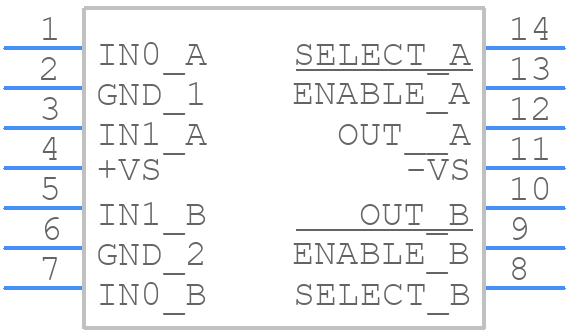

AD8182ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

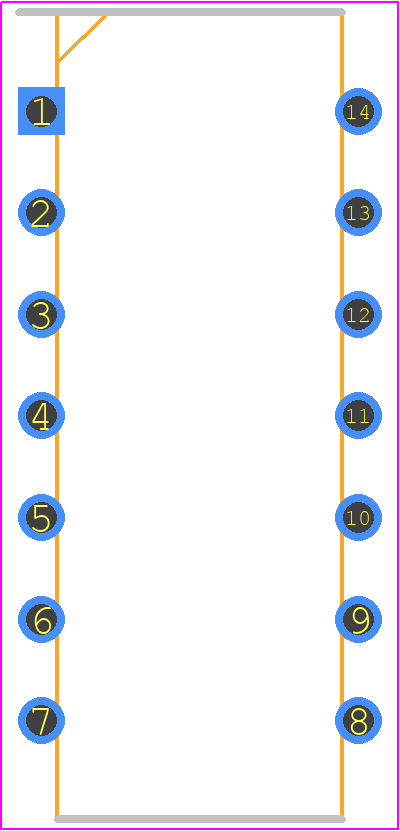

AD8182ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14_2020
click to zoom
3D Models
AD8182ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-14_2020
click to zoom

AD8182ANZ Details

  • Manufacturer Part Number:

    AD8182ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    N-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -4 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    93 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    5 ns

  • Switch-on Time-Max:

    10 ns

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8182ANZ Frequently Asked Questions (FAQs)

  • The AD8182ANZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply decoupling capacitors.
  • The gain and bandwidth of the AD8182ANZ can be optimized by selecting the appropriate gain resistors and capacitors, and by adjusting the compensation capacitor values. The datasheet provides guidelines for selecting these components, and simulation tools such as SPICE can be used to optimize the design.
  • The AD8182ANZ is specified to operate from -40°C to +125°C, but it is recommended to derate the device's performance at higher temperatures. The datasheet provides thermal resistance values and power dissipation guidelines to help designers ensure reliable operation over the desired temperature range.
  • The AD8182ANZ is a high-frequency device and can be susceptible to EMI. To minimize EMI, it is recommended to use shielding, keep the device away from noise sources, and use proper filtering and decoupling techniques. The datasheet provides guidelines for EMI reduction and compliance with regulatory standards.
  • The AD8182ANZ requires a well-regulated power supply with low noise and ripple. A recommended decoupling scheme includes using a combination of ceramic and electrolytic capacitors, with a total capacitance of at least 10uF, placed close to the device's power pins.
