AD8187ARUZ - Analog Devices

Description: AD8187ARUZ, Multiplexer Triple 2:1, 5 V, 24-Pin, TSSOP, 3

Download AD8187ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

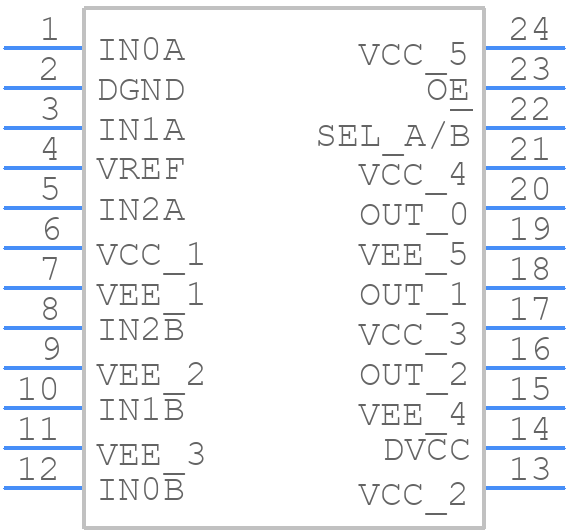

Symbol
AD8187ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8187ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD8187ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD8187ARUZ Details

  • Manufacturer Part Number:

    AD8187ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    95 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    3.8 ns

  • Switch-on Time-Max:

    4 ns

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8187ARUZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8187ARUZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals near the analog signals.
  • To optimize the performance of the AD8187ARUZ in a high-frequency application, it's recommended to use a low-ESR capacitor for the power supply decoupling, minimize the length of the input and output traces, and use a high-frequency-compatible PCB material. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • The maximum operating temperature range for the AD8187ARUZ is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • To troubleshoot common issues with the AD8187ARUZ, such as oscillation or instability, it's recommended to check the power supply voltage and decoupling, ensure proper grounding and shielding, and verify that the input and output signals are within the specified range. Additionally, it's recommended to use a scope or spectrum analyzer to measure the output signal and identify any signs of oscillation or instability.
  • Yes, the AD8187ARUZ can be used in a single-supply application. However, it's recommended to use a voltage divider or a voltage regulator to generate the required voltage levels for the device. Additionally, it's recommended to ensure that the input and output signals are within the specified range and that the device is properly biased.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8187ARUZ Overview

Use the download button to access the AD8187ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD818, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
