AD8195ACPZ - Analog Devices

Description: 1:1 HDMI/DVI Buffer with Equalization

Download AD8195ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

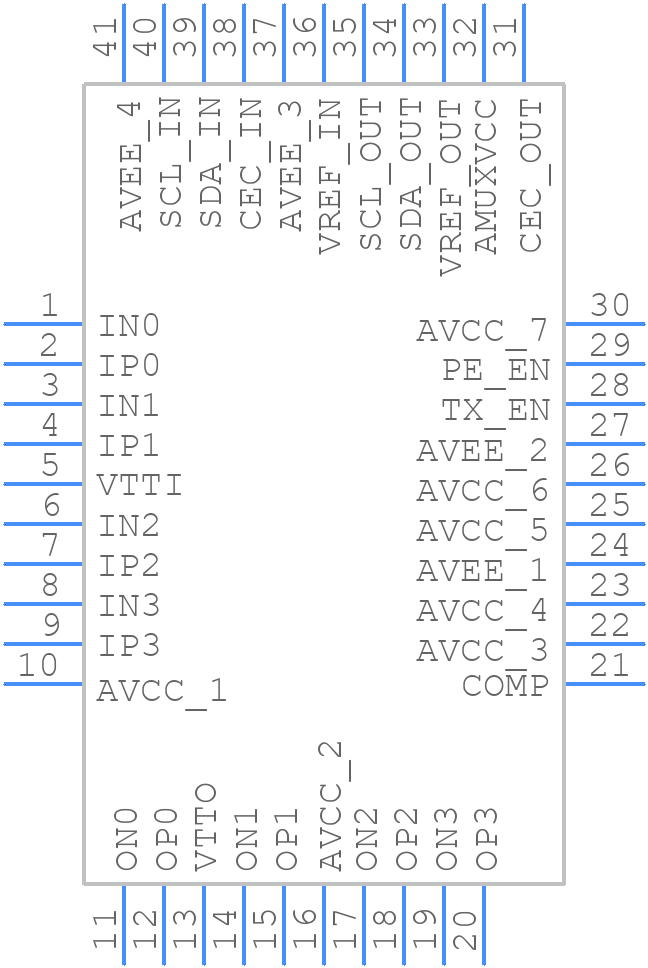

AD8195ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8195ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-1 (LFCSP)
click to zoom
3D Models
AD8195ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-1 (LFCSP)
click to zoom

AD8195ACPZ Details

  • Manufacturer Part Number:

    AD8195ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD8195ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8195ACPZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, using a low-ESR capacitor for decoupling and placing it close to the device's power pins can help reduce noise.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input common-mode voltage should be set to VCC/2, and the output should be terminated with a 100Ω resistor to ensure proper current sourcing.
  • The AD8195ACPZ can handle input signal amplitudes up to 2.5Vpp (peak-to-peak) without distortion. Exceeding this limit may result in signal clipping and distortion.
  • To compensate for the input capacitance, add a series resistor (Rs) in the input signal path. The value of Rs should be chosen such that Rs*Cin = RL*CL, where Cin is the input capacitance, RL is the load resistance, and CL is the load capacitance.
  • The recommended operating temperature range for the AD8195ACPZ is -40°C to +125°C. Operating the device outside this range may affect its performance and reliability.
