The recommended layout and placement for the AD8207WBRZ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
To optimize the performance of the AD8207WBRZ in a noisy environment, use shielding, filtering, and decoupling techniques. Use a shielded enclosure, add ferrite beads or chokes to the power supply lines, and decouple the power supply with capacitors. Additionally, use a low-pass filter at the input to reject high-frequency noise.
The AD8207WBRZ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
The AD8207WBRZ is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. Users should consult with Analog Devices Inc. and relevant industry standards to ensure the device meets the required specifications and regulations.
To troubleshoot common issues with the AD8207WBRZ, start by checking the power supply voltage, input signal integrity, and output loading. Ensure that the device is properly decoupled, and the input and output traces are properly terminated. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD8207WBRZ Overview

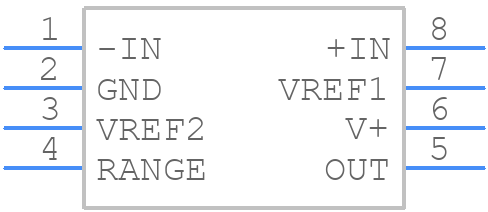

Use the download button to access the AD8207WBRZ schematic symbol, PCB footprint, and 3D model.
