AD8213WHRMZ footprint, schematic symbol and 3D model by Analog Devices

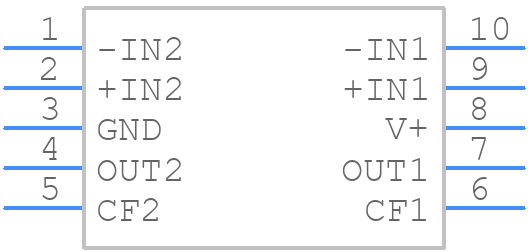

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD8213WHRMZ
Part Number AD8213WHRMZ
Manufacturer Analog Devices
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - RM-10 (MSOP)
Released Date May 16, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD8213WHRMZ Details

Manufacturer Part Number:
AD8213WHRMZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-10
Pin Count:
10
Manufacturer Package Code:
RM-10
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Bandwidth (3dB)-Nom:
0.5 MHz
Common-mode Reject Ratio-Min:
100 dB
Common-mode Reject Ratio-Nom:
120 dB
Frequency Compensation:
NO
Input Offset Voltage-Max:
2200 µV
JESD-30 Code:
S-PDSO-G10
JESD-609 Code:
e3
Length:
3 mm
Low-Bias:
NO
Low-Offset:
NO
Micropower:
NO
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP10,.19,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
4.5 V/us
Supply Current-Max:
4.5 mA
Supply Voltage Limit-Max:
12.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Gain-Min:
20
Wideband:
NO
Width:
3 mm

AD8213WHRMZ Frequently Asked Questions (FAQs)

A good PCB layout for the AD8213WHRMZ involves keeping the input and output traces separate, using a ground plane, and placing the device close to the sensing resistor. Additionally, it's recommended to use a Kelvin connection for the sensing resistor and to keep the leads as short as possible.
The sensing resistor (Rsense) value depends on the current range you want to measure and the desired output voltage range. A good starting point is to use the formula Rsense = (Vout_full_scale / I_full_scale) * (Rgain / (1 + Rgain)), where Vout_full_scale is the desired output voltage range, I_full_scale is the maximum current you want to measure, and Rgain is the gain resistor value.
The AD8213WHRMZ has a temperature coefficient of ±0.1% / °C, which can affect its accuracy. To compensate for temperature effects, you can use a temperature sensor to monitor the device's temperature and adjust the output accordingly. Alternatively, you can use a thermistor or a temperature-compensated sensing resistor to minimize the temperature effect.
To filter out high-frequency noise and aliasing, you can use a low-pass filter (LPF) or a band-pass filter (BPF) in the signal chain. A simple RC filter with a cutoff frequency of around 100 kHz to 1 MHz can be effective. Additionally, you can use a digital filter in your microcontroller or FPGA to further filter the output signal.
A good power supply decoupling for the AD8213WHRMZ involves using a 10 μF to 100 μF ceramic capacitor in parallel with a 1 μF to 10 μF film capacitor, both connected between the VCC pin and the GND pin. This helps to filter out high-frequency noise and ensure stable operation.
