A good PCB layout for the AD8214ARMZ involves keeping the input and output traces separate, using a ground plane, and placing the device close to the signal source. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
The gain resistor (Rg) should be chosen based on the desired gain and the input signal amplitude. A higher gain resistor value results in higher gain, but also increases the noise gain. A good starting point is to use the recommended value from the datasheet, and then adjust based on the specific application requirements.
The AD8214ARMZ can handle input voltages up to ±250mV, but the maximum input voltage is limited by the supply voltage. The device can operate with a single supply voltage from 2.7V to 5.5V, and the input voltage should be limited to ±VCC/2 to ensure proper operation.
The AD8214ARMZ has a built-in low-pass filter, but additional filtering may be necessary to remove high-frequency noise. A simple RC filter or a more complex active filter can be used to filter out high-frequency noise, depending on the specific application requirements.
The typical current consumption of the AD8214ARMZ is around 1.2mA, but this can vary depending on the supply voltage and the input signal amplitude. The device also has a shutdown mode that can reduce the current consumption to around 1μA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD8214ARMZ Overview

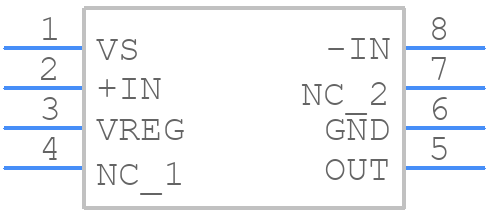

Use the download button to access the AD8214ARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD821,
or try a keyword search, such as Power Management Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
