AD8220BRMZ-R7 - Analog Devices

Description: Instrumentation Amplifiers FET Input Instrumentation Amplifier

Download AD8220BRMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

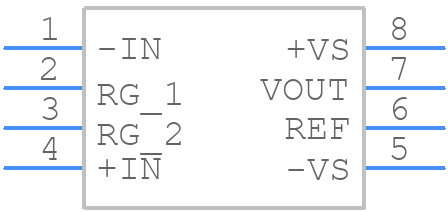

Symbol
AD8220BRMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8220BRMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-08-2022
click to zoom
3D Models
AD8220BRMZ-R7 - Analog Devices - 3D model - Small Outline Packages - RM-08-2022
click to zoom

AD8220BRMZ-R7 Details

  • Manufacturer Part Number:

    AD8220BRMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00001 µA

  • Bandwidth (3dB)-Nom:

    1.5 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Input Offset Current-Max (IIO):

    0.00002 µA

  • Input Offset Voltage-Max:

    125 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    2 V/us

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    3 mm

AD8220BRMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8220BRMZ-R7 involves keeping the input and output traces separate, using a ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to reduce noise and electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 10uF capacitors to ground. The recommended voltage range is 2.7V to 5.5V for VPOS and -2.7V to -5.5V for VNEG. Additionally, ensure the input common-mode voltage is within the specified range.
  • The AD8220BRMZ-R7 can handle input voltages up to ±VPOS or ±VNEG, whichever is less. However, it's recommended to limit the input voltage to ±10V to ensure reliable operation and prevent damage.
  • The gain of the AD8220BRMZ-R7 in a non-inverting configuration can be calculated using the formula: Gain = (R2/R1) + 1, where R1 and R2 are the feedback resistors. For example, if R1 = 1kΩ and R2 = 10kΩ, the gain would be (10kΩ/1kΩ) + 1 = 11.
  • The typical settling time of the AD8220BRMZ-R7 is around 1.5μs to 0.01%. This means that the output voltage will settle to within 0.01% of its final value within 1.5μs. This settling time should be considered when designing systems that require fast response times or high-speed data acquisition.
