AD8222BCPZ-RL - Analog Devices

Description: Precision, Dual-Channel Instrumentation Amplifier

Download AD8222BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

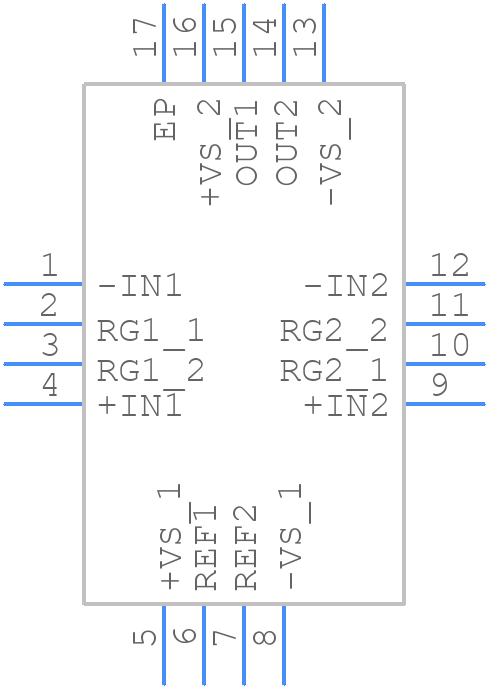

AD8222BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8222BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-26)LFCSP
click to zoom
3D Models
AD8222BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-26)LFCSP
click to zoom

AD8222BCPZ-RL Details

  • Manufacturer Part Number:

    AD8222BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.0006 µA

  • Input Offset Voltage-Max:

    80 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.002%

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    2.5 V/us

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    10000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    100

  • Width:

    4 mm
