AD8224BCPZ-WP - Analog Devices

Description: Instrumentation Amplifiers Dual Channel FET Instrumentation Amp

Download AD8224BCPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

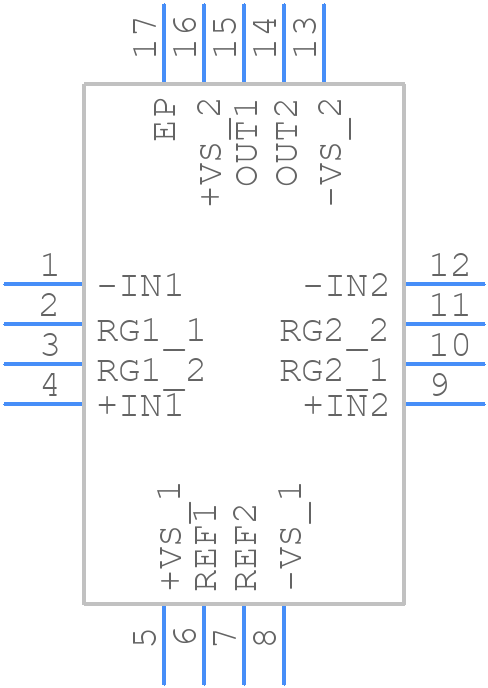

AD8224BCPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8224BCPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-26_ 2022
click to zoom
3D Models
AD8224BCPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-26_ 2022
click to zoom

AD8224BCPZ-WP Details

  • Manufacturer Part Number:

    AD8224BCPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00001 µA

  • Bandwidth (3dB)-Nom:

    1.5 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    6e-7 µA

  • Input Offset Voltage-Max:

    175 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.025%

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    4 mm

AD8224BCPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8224BCPZ-WP involves keeping the input and output traces separate, using a ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to reduce noise and electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 10uF capacitors to ground. The recommended voltage range is 2.7V to 5.5V for VPOS and -2.7V to -5.5V for VNEG. Additionally, ensure the input common-mode voltage is within the specified range.
  • The AD8224BCPZ-WP can handle input voltages up to ±VPOS or ±VNEG, whichever is greater. However, it's recommended to limit the input voltage to ±5V to ensure reliable operation and prevent damage.
  • The gain of the AD8224BCPZ-WP in a non-inverting configuration can be calculated using the formula: Gain = (R2/R1) + 1, where R1 and R2 are the feedback resistors. For example, if R1 = 1kΩ and R2 = 10kΩ, the gain would be (10kΩ/1kΩ) + 1 = 11.
  • The typical settling time of the AD8224BCPZ-WP is around 1.5μs to 0.1%. This means that the amplifier takes approximately 1.5μs to settle to within 0.1% of its final value after a step input. This settling time should be considered when designing systems that require fast response times or high-speed data acquisition.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8224BCPZ-WP Overview

Use the download button to access the AD8224BCPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD822, or try a keyword search, such as Instrumentation Amplifiers
