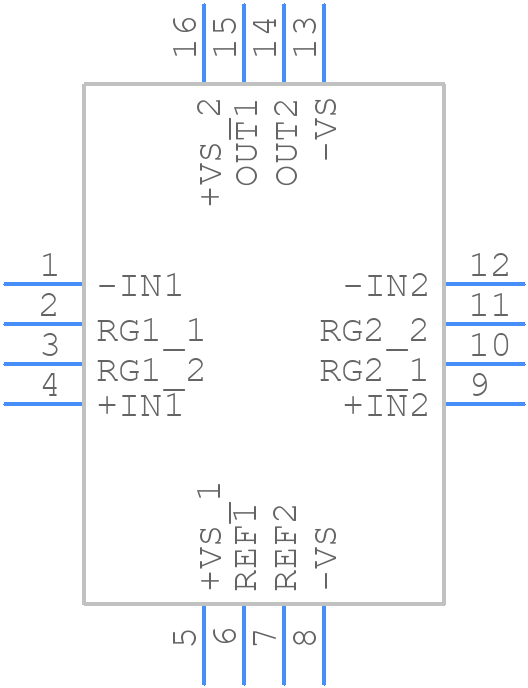

AD8224HACPZ-RL - Analog Devices

AD8224HACPZ-RL Details

• Manufacturer Part Number:

  AD8224HACPZ-RL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  CSP

• Package Description:

  LFCSP-16

• Pin Count:

  16

• Manufacturer Package Code:

  CP-16-19

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Average Bias Current-Max (IIB):

  0.000025 µA

• Bandwidth (3dB)-Nom:

  1.5 MHz

• Common-mode Reject Ratio-Min:

  78 dB

• Input Offset Current-Max (IIO):

  0.000002 µA

• Input Offset Voltage-Max:

  300 µV

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Non-linearity-Max:

  0.025%

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  0.75 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Gain-Max:

  1000

• Voltage Gain-Min:

  2

• Voltage Gain-Nom:

  10

• Width:

  4 mm
