AD8226ARZ-RL - Analog Devices

Description: Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier

Download AD8226ARZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

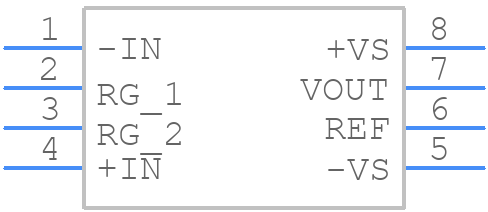

Symbol
AD8226ARZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8226ARZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - r8 [SOIC_N]
click to zoom
3D Models
AD8226ARZ-RL - Analog Devices - 3D model - Small Outline Packages - r8 [SOIC_N]
click to zoom

AD8226ARZ-RL Details

  • Manufacturer Part Number:

    AD8226ARZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.027 µA

  • Bandwidth (3dB)-Nom:

    1.5 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Current-Max (IIO):

    0.0015 µA

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.4 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    5

  • Width:

    3.9 mm

AD8226ARZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8226ARZ-RL involves keeping the input and output traces separate, using a ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to reduce noise and electromagnetic interference (EMI).
  • The gain resistor values for the AD8226ARZ-RL depend on the desired gain and input impedance. A good starting point is to use the gain resistor calculator tool provided by Analog Devices or to consult the application notes and design guides. It's also important to consider the trade-off between gain and bandwidth when selecting the resistor values.
  • The AD8226ARZ-RL has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, especially in high-power or high-temperature applications. A thermal pad or heat sink can be used to dissipate heat, and the device should be operated within the recommended temperature range of -40°C to 125°C.
  • To filter out noise and interference, it's recommended to use a low-pass filter or a band-pass filter in conjunction with the AD8226ARZ-RL. Additionally, using shielding, grounding, and decoupling capacitors can help to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • The AD8226ARZ-RL is designed to meet the electromagnetic compatibility (EMC) requirements of various regulatory standards, such as the European Union's EMC Directive and the FCC's Part 15 regulations. To ensure compliance, it's essential to follow proper PCB layout and design practices, use shielding and grounding, and perform EMC testing and certification.
