AD8231ACPZ-R7 - Analog Devices

Description: Zero Drift, Digitally Programmable Instrumentation Amplifier

Download AD8231ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

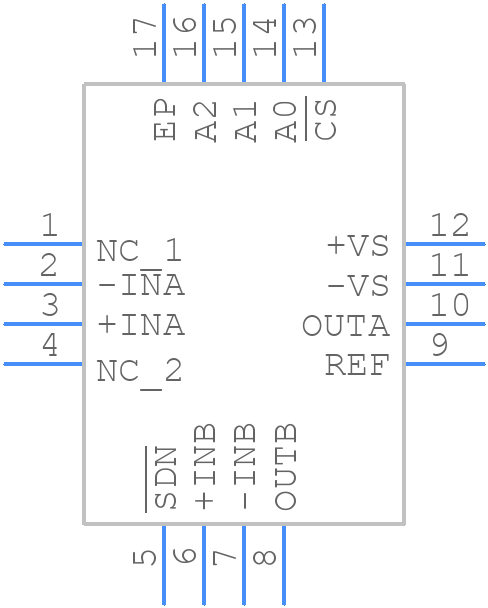

Symbol
AD8231ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8231ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-59
click to zoom
3D Models
AD8231ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-59
click to zoom

AD8231ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8231ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    100 dB

  • Input Offset Current-Max (IIO):

    0.0005 µA

  • Input Offset Voltage-Max:

    15 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.005%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    1.1 V/us

  • Subcategory:

    Instrumentation Amplifier

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD8231ACPZ-R7 Frequently Asked Questions (FAQs)

  • The AD8231ACPZ-R7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the electrodes, use a ground plane, and keep the analog and digital traces separate. A 4-layer PCB with a solid ground plane is recommended.
  • The gain and filtering of the AD8231ACPZ-R7 can be optimized for specific applications by adjusting the gain resistors (R1 and R2) and the filter capacitors (C1 and C2). The datasheet provides a gain calculation formula and filter response curves to help with the optimization process.
  • The AD8231ACPZ-R7 requires a well-decoupled power supply to minimize noise and ensure optimal performance. It is recommended to use a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed close to the device's power pins.
  • To ensure EMC with the AD8231ACPZ-R7, it is recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the power supply lines. Additionally, the device's analog and digital grounds should be connected to a single point on the PCB.
  • The LED indicators on the AD8231ACPZ-R7 can be driven using a current-limiting resistor and a voltage source. The recommended resistor value is 1kΩ to 4.7kΩ, and the voltage source should be limited to 5V to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8231ACPZ-R7 Overview

Use the download button to access the AD8231ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD823, or try a keyword search, such as Instrumentation Amplifiers
