AD8231ACPZ-RL - Analog Devices

Description: Zero Drift, Digitally Programmable Instrumentation Amplifier

Download AD8231ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

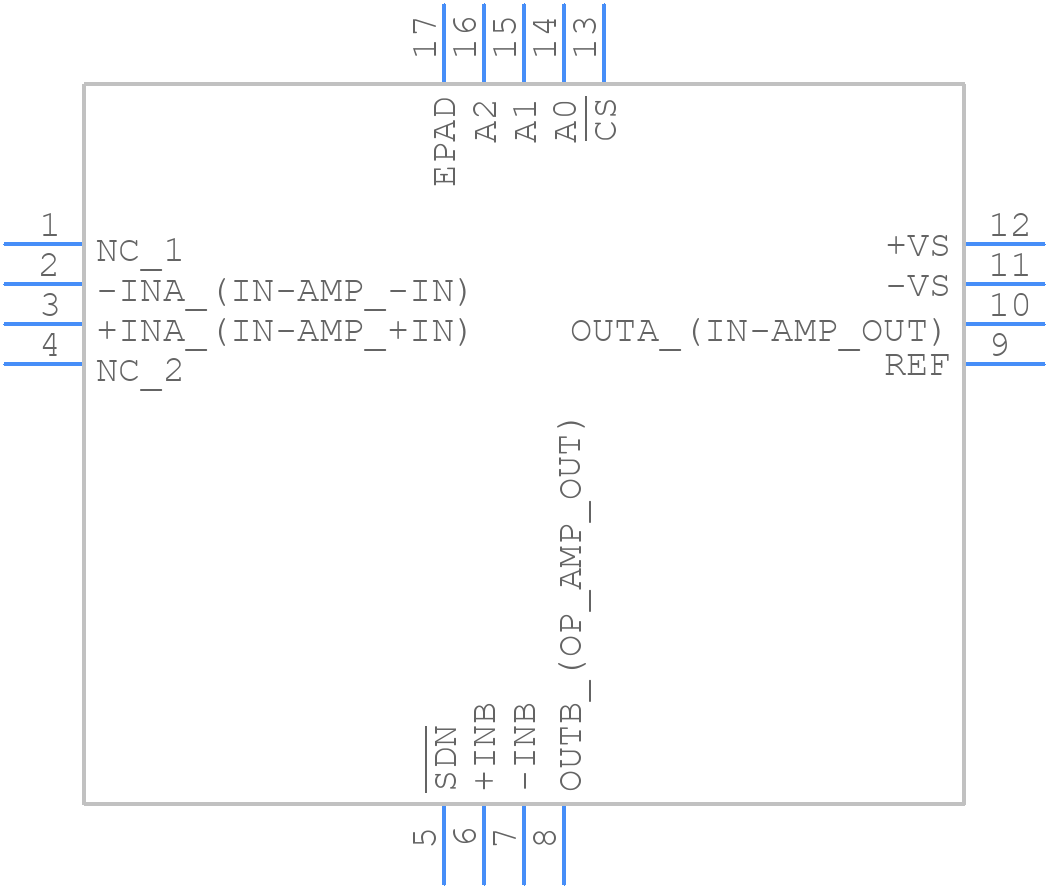

Symbol
AD8231ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8231ACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-59
click to zoom
3D Models
AD8231ACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-59
click to zoom

AD8231ACPZ-RL Details

  • Manufacturer Part Number:

    AD8231ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    100 dB

  • Input Offset Current-Max (IIO):

    0.0005 µA

  • Input Offset Voltage-Max:

    15 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.005%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    1.1 V/us

  • Subcategory:

    Instrumentation Amplifier

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD8231ACPZ-RL Frequently Asked Questions (FAQs)

  • The AD8231ACPZ-RL is a sensitive analog device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the device close to the electrodes or sensors to minimize noise pickup.
  • The AD8231ACPZ-RL has a programmable gain amplifier and a low-pass filter. To optimize the gain and filtering, you need to consider the amplitude and frequency range of your signal, as well as the noise floor and interference in your system. You may need to experiment with different gain settings and filter cutoff frequencies to achieve the best results for your specific application.
  • The AD8231ACPZ-RL requires a clean and stable power supply to operate optimally. It is recommended to use a low-ESR capacitor (e.g., 10uF) to decouple the power supply, and to add a ferrite bead or a pi-filter to filter out high-frequency noise and ripple.
  • To ensure EMC and reduce EMI, it is recommended to follow good design practices such as using a shielded enclosure, keeping the analog and digital circuits separate, using twisted pairs or shielded cables for signal transmission, and adding EMI filters or ferrite beads to reduce radiation and susceptibility.
  • The AD8231ACPZ-RL requires calibration and testing to ensure accurate and reliable operation. It is recommended to follow a calibration procedure that includes offset and gain adjustments, and to test the device using a signal generator and an oscilloscope to verify its performance and specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8231ACPZ-RL Overview

Use the download button to access the AD8231ACPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD823, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
