AD8231ACPZ-WP - Analog Devices

Description: Zero Drift, Digitally Programmable Instrumentation Amplifier

Download AD8231ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

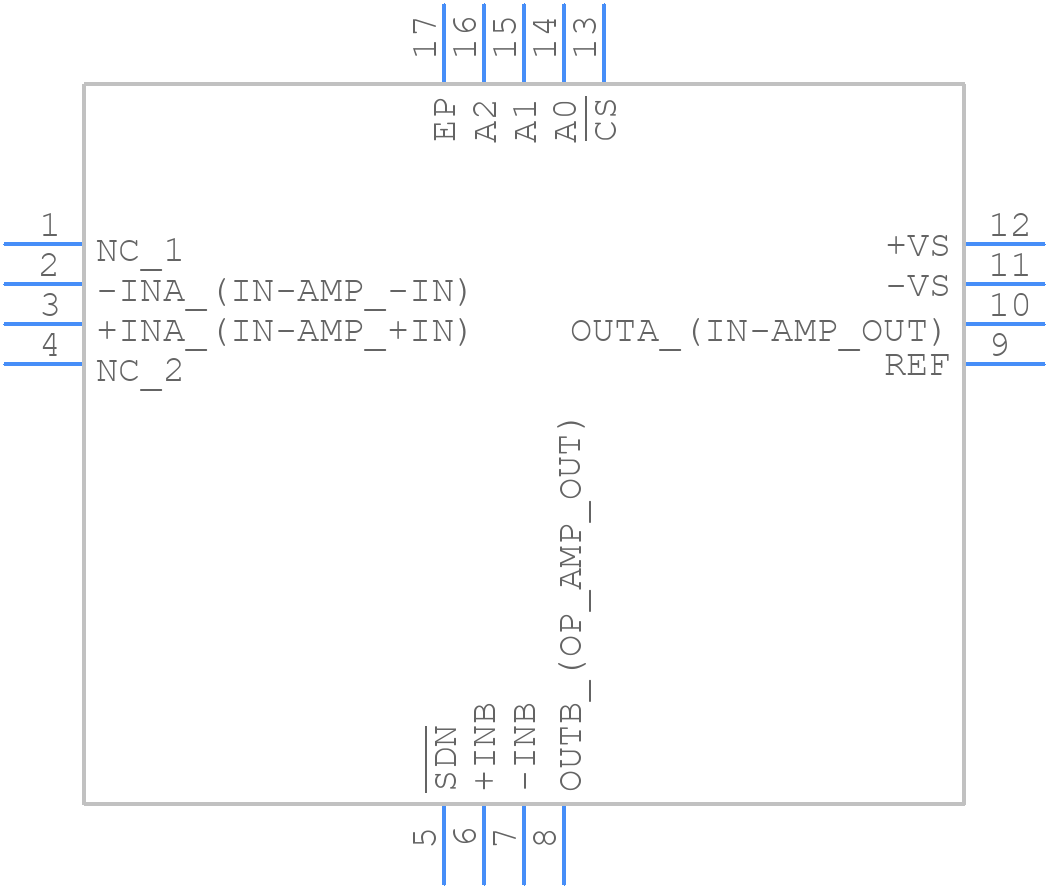

Symbol
AD8231ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8231ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-59
click to zoom
3D Models
AD8231ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-59
click to zoom

AD8231ACPZ-WP Details

  • Manufacturer Part Number:

    AD8231ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    100 dB

  • Input Offset Current-Max (IIO):

    0.0005 µA

  • Input Offset Voltage-Max:

    15 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.005%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    1.1 V/us

  • Subcategory:

    Instrumentation Amplifier

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD8231ACPZ-WP Frequently Asked Questions (FAQs)

  • The AD8231ACPZ-WP requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the electrodes, use a ground plane, and keep the analog and digital traces separate. Additionally, the device should be placed in a quiet area of the board, away from high-frequency sources.
  • The gain and filtering of the AD8231ACPZ-WP can be optimized by selecting the appropriate gain setting and filter cutoff frequency based on the specific application requirements. The device has a programmable gain amplifier and a low-pass filter that can be adjusted to suit the application. It is recommended to consult the datasheet and application notes for guidance on optimizing the gain and filtering.
  • The AD8231ACPZ-WP requires proper power supply decoupling to ensure stable operation. It is recommended to use a 10uF capacitor in parallel with a 100nF capacitor between the power supply pins (VCC and GND) to filter out noise and ripple. Additionally, it is recommended to use a low-ESR capacitor to minimize power supply noise.
  • To ensure EMC with the AD8231ACPZ-WP, it is recommended to follow proper PCB design practices, such as using a ground plane, minimizing trace lengths, and using shielding. Additionally, it is recommended to use a metal shield around the device to reduce electromagnetic radiation. It is also important to follow the guidelines outlined in the datasheet and application notes for EMC compliance.
  • The recommended method for debugging and troubleshooting the AD8231ACPZ-WP is to use a logic analyzer or oscilloscope to monitor the device's output signals. It is also recommended to use the device's built-in diagnostic features, such as the internal test signals, to help identify issues. Additionally, it is recommended to consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8231ACPZ-WP Overview

Use the download button to access the AD8231ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD823, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
