AD8231TCPZ-EP-R7 - Analog Devices

Description: Zero Drift, Digitally Programmable Instrumentation Amplifier

Download AD8231TCPZ-EP-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

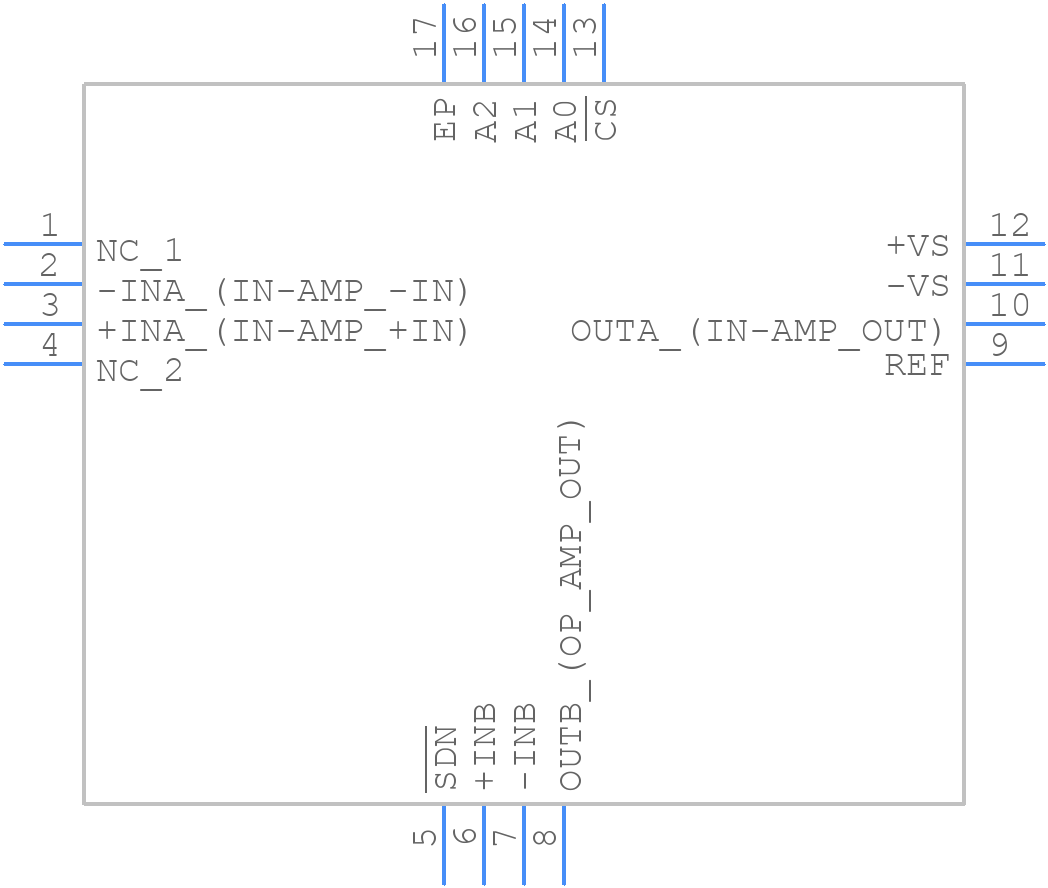

AD8231TCPZ-EP-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8231TCPZ-EP-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17 (LFCSP)_2025
click to zoom
3D Models
AD8231TCPZ-EP-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17 (LFCSP)_2025
click to zoom

AD8231TCPZ-EP-R7 Details

  • Manufacturer Part Number:

    AD8231TCPZ-EP-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    100 dB

  • Input Offset Current-Max (IIO):

    0.0005 µA

  • Input Offset Voltage-Max:

    15 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.005%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    1.1 V/us

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD8231TCPZ-EP-R7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8231TCPZ-EP-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the electrodes to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Optimizing the gain and filtering for your specific application involves selecting the appropriate gain settings and filter cutoff frequencies based on the signal amplitude and frequency content of your signal. You may need to experiment with different gain settings and filter configurations to achieve the desired signal quality.
  • The AD8231TCPZ-EP-R7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Additionally, latch-up protection is built-in, but it's recommended to follow proper layout and design guidelines to minimize the risk of latch-up.
  • To ensure EMC with the AD8231TCPZ-EP-R7, follow proper PCB design and layout guidelines, use shielding and filtering as needed, and ensure that the device is properly grounded and decoupled. Additionally, follow relevant EMC standards and regulations for your specific application.
  • The AD8231TCPZ-EP-R7 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use thermal vias and thermal pads as needed, and avoid overheating the device.
