AD8250ARMZ-RL - Analog Devices

Description: Instrumentation Amplifiers Hi Speed Programmable Gain In-Amp

Download AD8250ARMZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

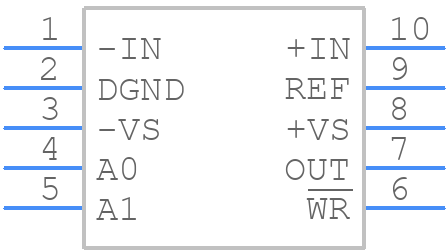

AD8250ARMZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8250ARMZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD8250ARMZ-RL - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD8250ARMZ-RL Details

  • Manufacturer Part Number:

    AD8250ARMZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.04 µA

  • Bandwidth (3dB)-Nom:

    10 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Current-Max (IIO):

    0.03 µA

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -17 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage Limit-Max:

    17 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    10

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    2

  • Width:

    3 mm

AD8250ARMZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8250 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To optimize the gain and bandwidth of the AD8250, you can adjust the gain resistors (Rg) and the feedback capacitors (Cf) according to the desired gain and bandwidth requirements. You can also use the AD8250's internal gain settings and adjustable bandwidth to optimize performance for your specific application.
  • The AD8250 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. You can also use thermal simulation tools to model the thermal performance of your design.
  • To ensure EMC and reduce EMI, use a shielded enclosure, keep the AD8250 away from high-frequency sources, use a common-mode choke, and add EMI filters to the power supply and signal lines. You can also use simulation tools to model the electromagnetic performance of your design.
  • To ensure stable operation, use a low-ESR capacitor (e.g., 10 μF) close to the AD8250's power pins, and add a ferrite bead or a pi-filter to the power supply lines to reduce noise and ripple. You can also use a voltage regulator with a low dropout voltage to minimize power supply noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8250ARMZ-RL Overview

Use the download button to access the AD8250ARMZ-RL schematic symbol, PCB footprint, and 3D model.
