AD8253ARMZ-RL - Analog Devices

Description: Instrumentation Amplifier 1 Circuit 10-MSOP , 10V ~ 30V , 4.6mA , 10MHz , -40°C ~ 85°C

Download AD8253ARMZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

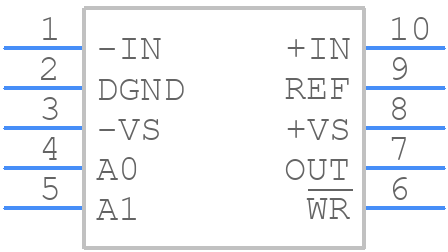

AD8253ARMZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8253ARMZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD8253ARMZ-RL - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD8253ARMZ-RL Details

  • Manufacturer Part Number:

    AD8253ARMZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.04 µA

  • Bandwidth (3dB)-Nom:

    10 MHz

  • Input Offset Current-Max (IIO):

    0.03 µA

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -17 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    25 V/us

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage Limit-Max:

    17 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    3 mm

AD8253ARMZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8253ARMZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short and direct traces for the input and output signals, and avoid running digital signals near the analog signals.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. It's also important to use a high-quality voltage reference and to minimize noise and interference during the calibration process.
  • The AD8253ARMZ-RL can handle input voltages up to ±10V, but it's recommended to limit the input voltage to ±5V to ensure optimal performance and prevent damage to the device.
  • To troubleshoot issues with the AD8253ARMZ-RL, start by checking the power supply voltage, ensuring it's within the recommended range. Next, verify that the input signals are within the specified range and that the device is properly calibrated. If issues persist, check for noise sources, such as digital signals or electromagnetic interference, and ensure that the PCB layout is optimized for the device.
  • The AD8253ARMZ-RL is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's essential to follow the recommended operating conditions and derate the device's performance accordingly. Additionally, ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures.
