AD8271ARMZ-RL - Analog Devices

Description: Programmable Gain Precision Difference Amplifier

Download AD8271ARMZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

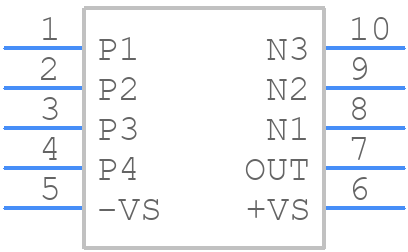

AD8271ARMZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8271ARMZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM10
click to zoom
3D Models
AD8271ARMZ-RL - Analog Devices - 3D model - Small Outline Packages - RM10
click to zoom

AD8271ARMZ-RL Details

  • Manufacturer Part Number:

    AD8271ARMZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:25.173

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bandwidth (3dB)-Nom:

    15 MHz

  • Common-mode Reject Ratio-Min:

    70 dB

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD8271ARMZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8271ARMZ-RL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to reduce noise and interference.
  • The gain resistor values for the AD8271ARMZ-RL depend on the desired gain and input impedance. Analog Devices provides a gain calculator tool on their website that can help determine the correct resistor values based on the specific application requirements.
  • The AD8271ARMZ-RL has an operating temperature range of -40°C to +125°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and accuracy.
  • Yes, the AD8271ARMZ-RL can be used in a single-supply configuration, but it requires a voltage divider or a reference voltage to set the output common-mode voltage. Additionally, the input signal should be biased to be within the device's input common-mode range.
  • To ensure EMC when using the AD8271ARMZ-RL, it's recommended to follow proper PCB layout and design practices, such as using shielding, filtering, and decoupling. Additionally, the device should be placed in a shielded enclosure, and the input and output cables should be properly terminated and shielded.
