AD8271BRMZ-R7 - Analog Devices

Description: Programmable Gain Precision Difference Amplifier

Download AD8271BRMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

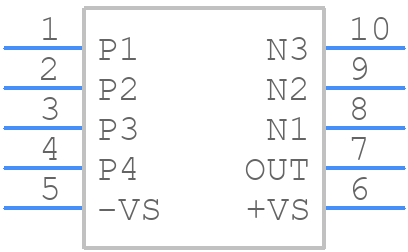

Symbol
AD8271BRMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8271BRMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8271BRMZ-R7
click to zoom
3D Models
AD8271BRMZ-R7 - Analog Devices - 3D model - Small Outline Packages - AD8271BRMZ-R7
click to zoom

AD8271BRMZ-R7 Details

  • Manufacturer Part Number:

    AD8271BRMZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:25.174

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bandwidth (3dB)-Nom:

    15 MHz

  • Common-mode Reject Ratio-Min:

    74 dB

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8271BRMZ-R7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8271BRMZ-R7 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is driving. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals near the analog input traces.
  • To optimize the performance of the AD8271BRMZ-R7 in a noisy environment, it is recommended to use shielding, filtering, and grounding techniques. This includes using a metal shield around the device, adding ferrite beads or chokes to the input and output lines, and connecting the device to a clean analog ground. Additionally, using a low-pass filter at the input can help to reject high-frequency noise.
  • The maximum operating temperature range for the AD8271BRMZ-R7 is -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the AD8271BRMZ-R7 can be used with a single-supply voltage. However, the device requires a minimum supply voltage of 2.7V and a maximum supply voltage of 5.5V. Additionally, the output voltage swing will be limited to the supply voltage minus 1.5V, so a single-supply voltage may not provide the full output voltage range.
  • The output voltage of the AD8271BRMZ-R7 can be calculated using the following equation: VOUT = (VIN x GAIN) + VREF, where VIN is the input voltage, GAIN is the gain setting (1, 2, or 4), and VREF is the reference voltage (typically 1.25V or 2.5V).
