AD8271BRMZ-RL - Analog Devices

Description: Programmable Gain Precision Difference Amplifier

Download AD8271BRMZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

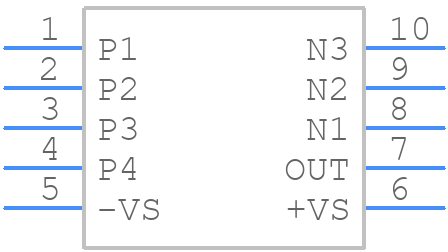

Symbol
AD8271BRMZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8271BRMZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10(MSOP)_1
click to zoom
3D Models
AD8271BRMZ-RL - Analog Devices - 3D model - Small Outline Packages - RM-10(MSOP)_1
click to zoom

AD8271BRMZ-RL Details

  • Manufacturer Part Number:

    AD8271BRMZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:25.175

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bandwidth (3dB)-Nom:

    15 MHz

  • Common-mode Reject Ratio-Min:

    74 dB

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8271BRMZ-RL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8271BRMZ-RL involves keeping the input and output traces as short as possible, using a ground plane to reduce noise, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals near the analog signals.
  • To optimize the performance of the AD8271BRMZ-RL in a noisy environment, use shielding, filtering, and grounding techniques to reduce electromagnetic interference (EMI). Additionally, use a low-pass filter at the input to remove high-frequency noise, and consider using a ferrite bead or a common-mode choke to reduce common-mode noise.
  • The maximum operating temperature range for the AD8271BRMZ-RL is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the AD8271BRMZ-RL can be used in a high-impedance circuit, but it's recommended to use a buffer amplifier or a voltage follower to drive the input signal to ensure stability and accuracy. Additionally, the input impedance of the AD8271BRMZ-RL is relatively high, so it's suitable for use in high-impedance circuits.
  • Common issues with the AD8271BRMZ-RL include noise, oscillation, and inaccurate output. To troubleshoot these issues, check the power supply voltage, input signal integrity, and PCB layout. Use an oscilloscope to measure the input and output signals, and check for signs of noise or oscillation. Additionally, consult the datasheet and application notes for troubleshooting guidelines.
