AD8271BRMZ - Analog Devices

Description: Analog Devices AD8271BRMZ, Differential Amplifier 20MHz Rail to Rail Input 10-Pin MSOP

Download AD8271BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

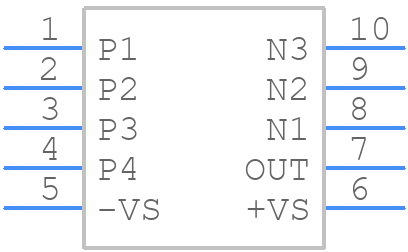

Symbol
AD8271BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8271BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
AD8271BRMZ - Analog Devices - 3D model - Small Outline Packages - . 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

AD8271BRMZ Details

  • Manufacturer Part Number:

    AD8271BRMZ

  • Source Url Status Check Date:

    2013-05-01 14:56:25.173

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bandwidth (3dB)-Nom:

    15 MHz

  • Common-mode Reject Ratio-Min:

    74 dB

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8271BRMZ Frequently Asked Questions (FAQs)

  • The AD8271BRMZ is a high-precision, high-impedance amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the signal source, use a ground plane, and keep the input traces short and shielded. Additionally, it is recommended to use a low-ESR capacitor for the power supply decoupling.
  • The gain and bandwidth of the AD8271BRMZ can be optimized by selecting the appropriate gain resistor values and capacitor values for the desired frequency response. The datasheet provides a gain-bandwidth product graph to help with this selection. Additionally, the device's gain can be adjusted by changing the ratio of the gain resistors, and the bandwidth can be optimized by selecting the appropriate capacitor values for the desired frequency response.
  • The AD8271BRMZ requires a low-noise power supply to ensure optimal performance. It is recommended to use a low-ESR capacitor (e.g., 10uF ceramic capacitor) for power supply decoupling, placed as close as possible to the device's power pins. Additionally, it is recommended to use a separate power supply for the analog and digital sections of the device.
  • To minimize noise and interference in the AD8271BRMZ, it is recommended to use a shielded enclosure, keep the input traces short and shielded, and use a low-noise power supply. Additionally, it is recommended to use a common-mode filter or a differential amplifier to reject common-mode noise and interference.
  • The AD8271BRMZ is specified to operate over a temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
