AD8279ARZ-RL - Analog Devices

Description: Low Cost Difference Amplifiers

Download AD8279ARZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

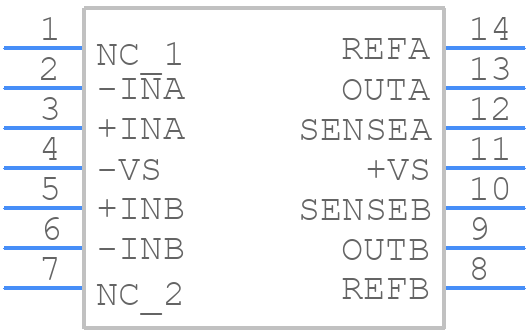

Symbol
AD8279ARZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8279ARZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-014
click to zoom
3D Models
AD8279ARZ-RL - Analog Devices - 3D model - Small Outline Packages - R-014
click to zoom

AD8279ARZ-RL Details

  • Manufacturer Part Number:

    AD8279ARZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:25.208

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.55 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1.4 V/us

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8279ARZ-RL Frequently Asked Questions (FAQs)

  • The AD8279ARZ-RL is a high-gain, high-impedance amplifier, so it's crucial to follow proper layout and placement guidelines to minimize noise and ensure optimal performance. A good rule of thumb is to keep the input traces as short as possible, use a solid ground plane, and keep the amplifier away from high-current or high-frequency signals. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • The gain resistor values for the AD8279ARZ-RL depend on the specific application and desired gain. A good starting point is to use the gain calculation formula provided in the datasheet, which is G = (Rf/Rg) + 1. Then, choose resistor values that meet the desired gain and ensure that the total impedance seen by the amplifier is within the recommended range.
  • The AD8279ARZ-RL has an absolute maximum input voltage rating of ±15V. Exceeding this voltage can damage the device. It's essential to ensure that the input voltage stays within the recommended range to prevent damage and ensure reliable operation.
  • To filter out noise and interference, it's recommended to use a low-pass filter or a band-pass filter in conjunction with the AD8279ARZ-RL. Additionally, using a shielded enclosure, keeping the amplifier away from high-frequency signals, and using a low-ESR capacitor for power supply decoupling can help minimize noise and interference.
  • A good power supply decoupling scheme for the AD8279ARZ-RL involves using a low-ESR capacitor (e.g., 10uF ceramic capacitor) in parallel with a larger electrolytic capacitor (e.g., 10uF). This helps to filter out high-frequency noise and ensures a stable power supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8279ARZ-RL Overview

Use the download button to access the AD8279ARZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD827, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
